Electronic Corrossion Environmental Test Chambers , Salt Spray Test Cabinet

Price Negotiable

Price: Negotiable

MOQ: 1 Set

Delivery Time: 20 days after order confirmed

Brand: HAIDA

Product Description

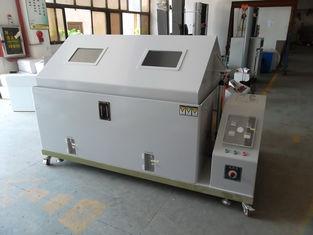

Electronic Corrossion Environmental Test Chambers , Salt Spray Test Cabinet

Specifications:

Salt Spray Test Cabinet
1.According to ISO,JIS,ASTM
2.Multiple safety protection devices
3.Adopt imported P.V.C rigid

Salt Spray Test Cabinet adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.

The main technical parameters:

Salt Spray Test Cabinet
Model	HD-E808-200A
Inner Box Size (L×W×H)	200×100×100 cm
Outside Box Size(L×W×H)	270×150×150 cm
Equipment Material	Both inside & outside shell adopt imported P.V.C rigid plastic board, and tank cover uses imported transparent P.V.C. rigid plastic board
Temperature Range	35°C~55°C
Temperature Fluctuations	≤±0.5°C
Temperature Uniformity	≤±2°C
Temperature Precision	±1°C
Test Chamber Temperature	Salt Spray Method (NSS ACSS)35±1°C Corrosion-resistant Testing Method(CASS)50±1°C
Saturated air Barrel Temperature	Salt Spray Method (NSS ACSS)47±1°C Corrosion-resistant Testing Method(CASS)63±1°C
Brine Temperature	35°C±1°C
Spray Quantity	1.0~2.0 ml / 80cm2 / hr
PH	Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume	1440L
Brine Tank Capacity	40L
Power	1 &, AC220V,30A
Multiple Safety Protection Devices	Current discharge protection, over pressure protection,over temperature protection, over load fuse protection
Accessories	Testing Salt/ Measuring tank/ Equipment each 1 set
Standard	CNS: 3627, 3385, 4159, 7669, 8886; JIS: D0201, H8502, H8610, K5400, Z2371; ISO: 3768, 3769, 3770; ASTM: B117, B268
