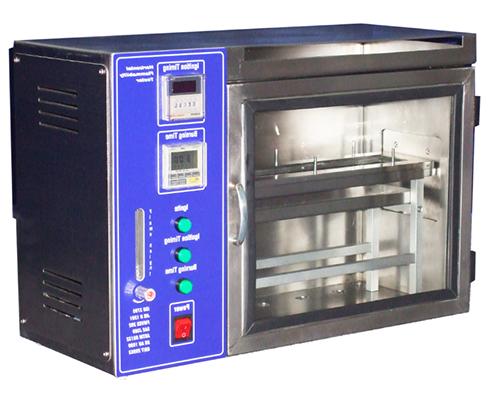

Stainless Steel Frame Automotive Interior Flammability Test Machine
stainless steel frame Automotive interior Flammability test machine
APPLICATIONS & TEST PURPOSE:
The machine is used to test foam relative combustion rate and flame resistance. It also applys to automobile interior materials flame retardant properties in the failure and non-normal state, it is with full stainless steel of whole frame.
DESIGN STANDARD: ISO 3795
STANDARD FEATURES:
| Specimen ignition Time | 15s |
| Specimen undersurface to the burning bottom plate distance | 178mm |
| The distance front specimen holder to inner surface of the combustion chamber | 22mm |
| The distance outside specimen holder to inner surface of the combustion chamber | 50mm |
| Nozzle inner diameter | Ø9.5mm |
| Air adjustment hole | flame time 0 ~ 99min 99S(can be adjusted) |
| Flame height | 20mm to 100mm as per standard |
| Time setting range | 0 ~ 9999.9s |
| Burning Angle | 90 ° (0 °) |
| Thermometer | 150 ℃, the resolution: 1 ℃ |
| Resolution | 0.1s |
| Combustion gas | high purity liquid gas(provided by customer) |
| Configurations | Control box, burning box body, burning lamp, solenoid valve, high pressure igniter, thermometer, signal control line, specimen holder |
customer letter
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
FAQ
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
