Office Chair Tilting Tester Chair Back Fatigue Stress And Wear Test
Office Chair Tilting Tester Chair Back Fatigue Stress And Wear Test
Application:
The machine is designed to test back by specified load block with setting force and speed, to assess chair back durability.
Test Standard:BIFMA X5.1 2017

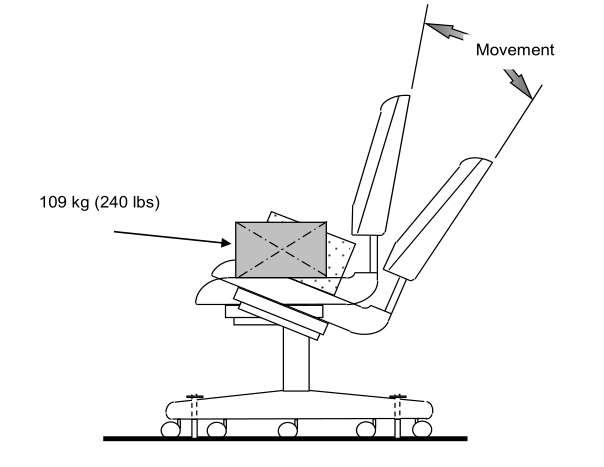

Test Images:
Refers to Bifma x5.1 2017 clause 9 Tilt Mechanism Test - Cyclic
Test Procedure:
1)The unit shall be cycled for 300,000 cycles at a rate between 10 and 30 cycles per minute.
2)The tilt mechanism and/or cycling device should be checked and readjusted as needed to maintain the original conditions specified.
Standard Features:
1. Force actuator height is adjustable to suit different kinds of chair (500-1200 mm)
2. Test cycles: 0～999,999 (adjustable)
3. Test speed: 0～30 time /min
4. Force of the actuator is adjustable
5. Back load: 5～100kg
6. Compressed air requirement: 6 kg/cm2
7. Holding and cyclic time: 0～99S
8. Control model: PLC, Programmable controller
9. Power: one phase, AC 220V, 50Hz.
