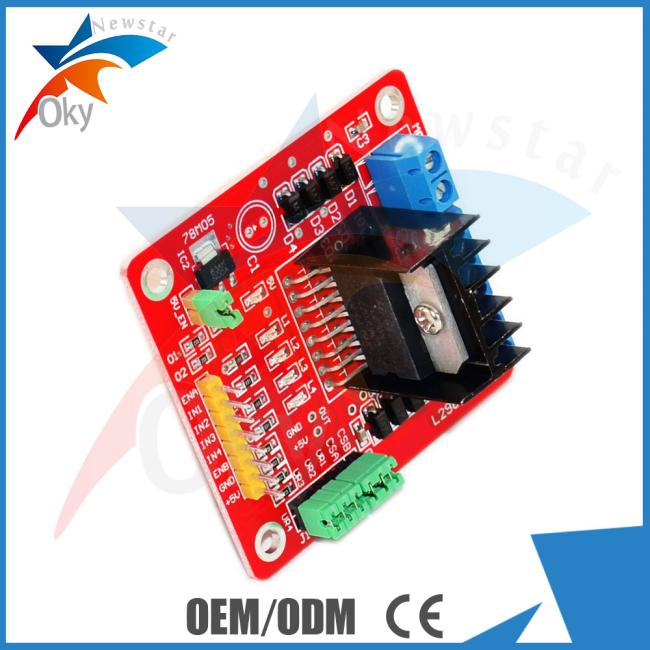

L298N Motor Drive Board module for Arduino For Stepper Motor / Intelligent Vehicle

L298N Motor Drive Board module for Arduino For Stepper Motor / Intelligent Vehicle

Specifications:

The L298N driver module, using ST's L298N chip, can directly drive the two 3-30V DC motor, and provides a 5V output interface, can give5V MCU circuit power supply system, support for 3.3VMCUcontrol, you can easily control the motor speed and direction, but also can control the 2phase stepping motor, is necessary for intelligent car.

Product parameter:

1. drive chip: L298N dual H bridge driver IC

2. drive part of the terminal power supply range VMS: drive + 5 V ~35V

3. drive part peak current Io:2A/ Bridge

4.part of the terminal power supply range Vss:4.5-5.5V logic

5.part of the logic of operating current range:0~ 36mA

6. control signal input voltage range: high level 4.5-5.5V low level0V

7. Maximum power:720W

8. storage temperature:25 ~130C

9. drive plate size:55mm*60mm*30mm

10. drive plate weight: 33g

11. other features: control the direction indicator light, a power indicator, current detection, part of the logic board electricity taking interfaces
