Bluetooth4.0 BLE Transceiver Module for Arduino Voltage 5V
Bluetooth4.0 BLE Transceiver Module for Arduino Voltage 5V
Features:
Support Remote control mode, remote device can control PIO (pin or modify settings) by AT commander when connected.
Automatically enters transparent serial mode after device is paired and connected.
Armed with firmware V526 and it supports 8 ADC channels and one PMW channel.
Support Notification Center Service (ANCS).
Ultra low standby power consumption 90uA-800uA,vast connection distance of 100 feet.
Super fast reaction rate of 0.4 seconds.
Support Android, PC,ECT
Specifications:
Bluetooth version: V4.0
Connection distance: 100 ft
Power consumption: 90uA-800uA
Reaction rate: 0.4s
Soc: CC2541
MFI: No need
Color: Black
Material: Glass Fiber & Plastic & Iron
Weight: 1g / 0.03oz
Dimensions: 27 * 13 * 2mm / 1.06 * 0.52 * 0.07in
Package weight: 5g / 0.18oz
Package size: 80 * 60 * 2mm / 3.1 * 2.3 * 0.07in
Package include:

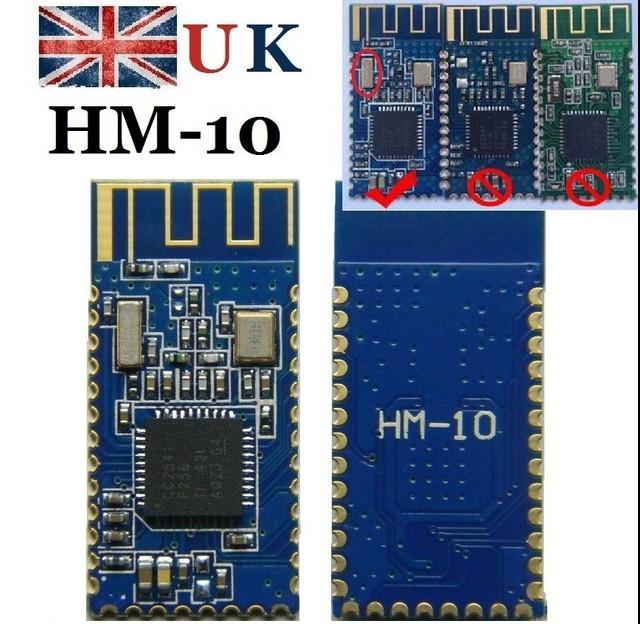

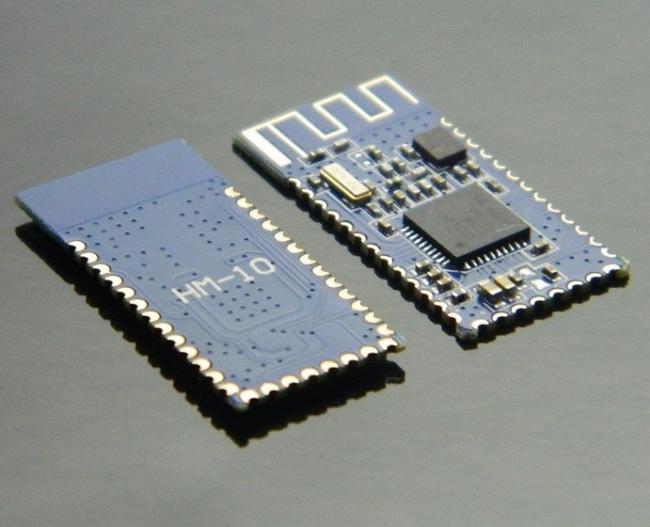

1 x HM-10 Transparent Bluetooth 4.0 Serial Port Module
Competitive Advantage:
1.Convenient & Friendly Customer Service
2. Low Prices Direct From Factory Suppliers
3. Fast Delivery Around The Globe.
4. High Quality With Global Standards.
5. 3 year factory warranty
6. Safe shipping way and payment
Photos:
