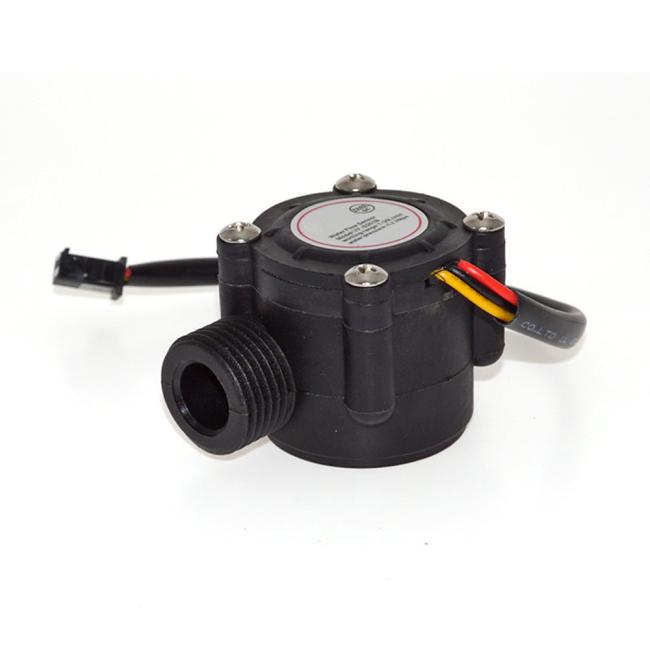

1/2" Hall Effect Flowmeter Control Water Flow Sensor Water YF-S201

Features:

Flowmeter with G1/2 Threads - simple output to measure the flow rate of water or other non-flammable liquids

Great for use with Ard or other microcontrollers - may also be used for gases with some adjustment for density.

1/2" Pipe Threads, Hall Effect Sensor interface, 1-30L/min 1.2MPa Capacity

1. The lowest rated working voltage: DC4.5 5V-24V
2. Maximum operating current: 15 mA (DC 5V)
3. Working voltage range: DC 5~18 v
4. Load capacity: ≤ 10 mA (DC 5V)
5. Use temperature: ≤ 80 ℃
6. Operating humidity range: 35%~90%RH (no frost)
7. Aallowing pressure: pressure 1.2Mpa
8. Temperature: -25~+80 ° c
9. External threads: 1/2"
10. High amplitude ≥ 4.6V
11. Low amplitude ≤ 0.5V
12. Electric strength 1250V/min
13. Insulation resistance ≥ 100MΩ
14. Hydrostatic pressure testing ≤ 2.0Mpa
15. External Threads: 1/2"

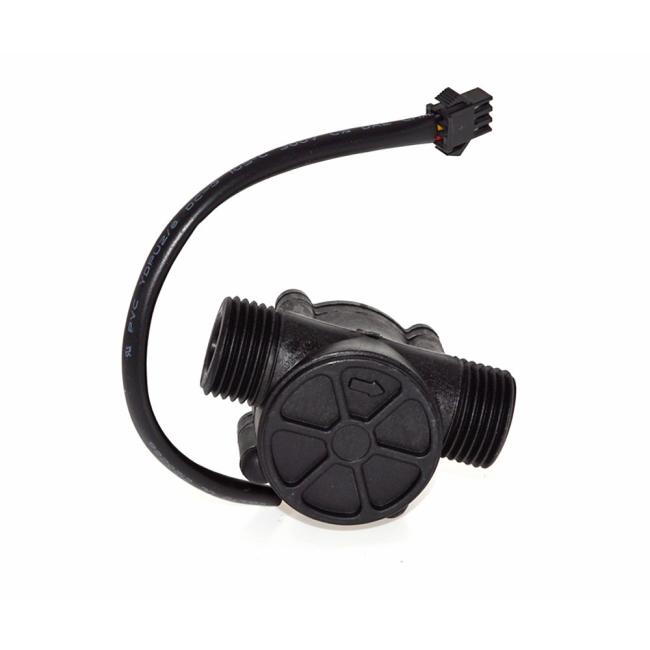

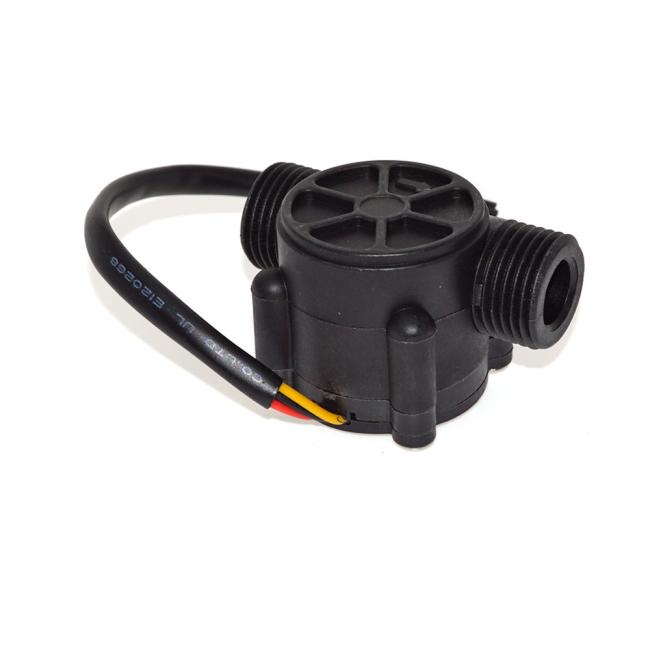

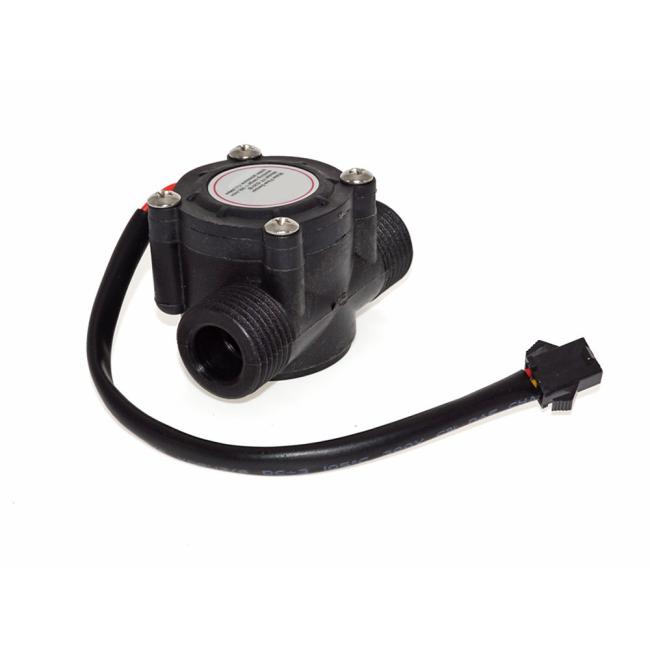

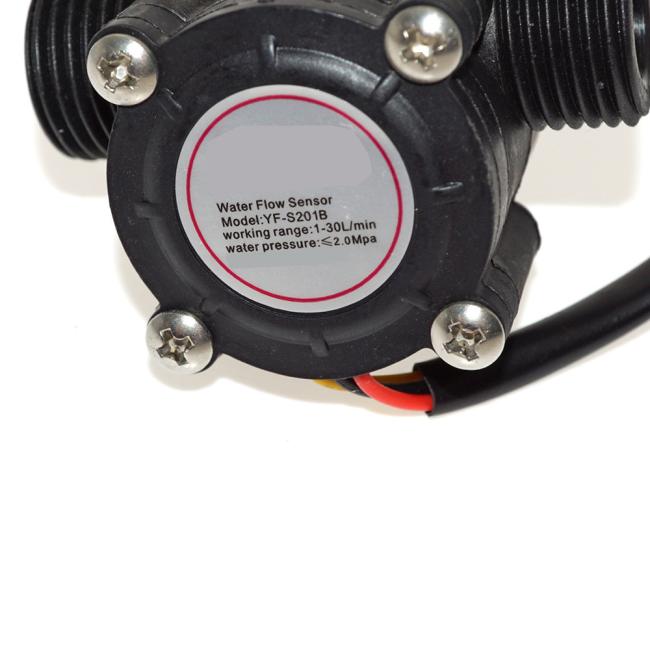

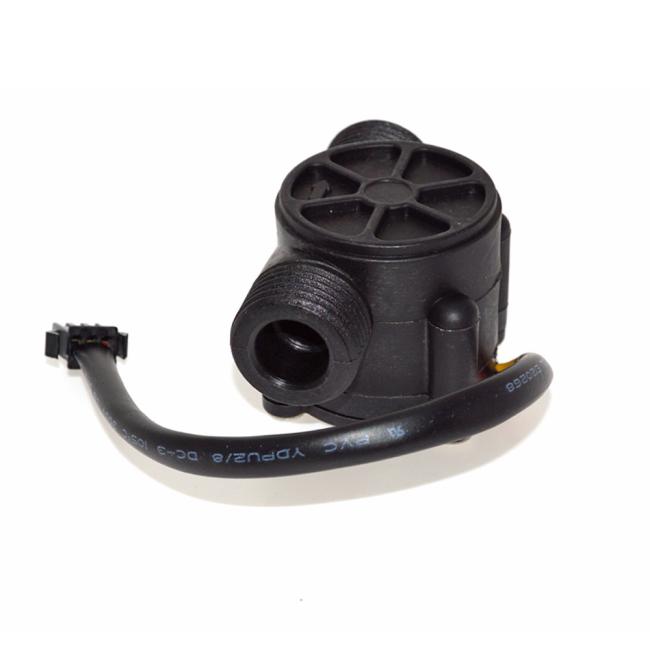

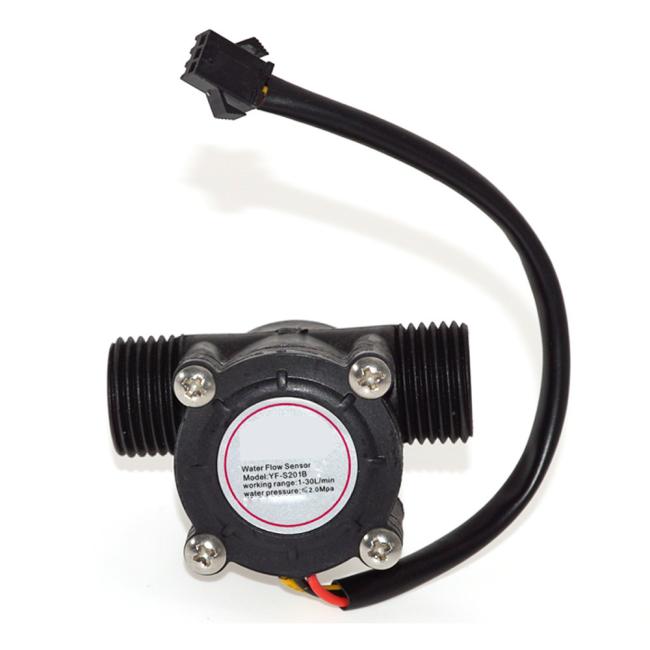

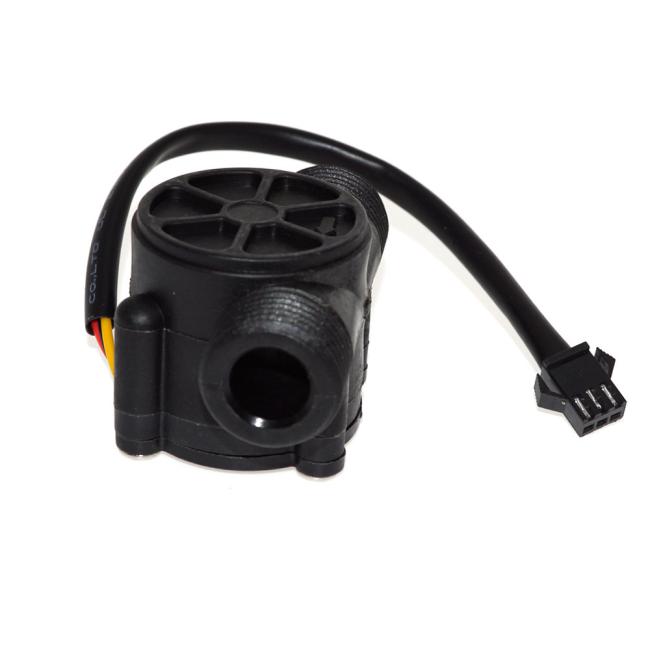

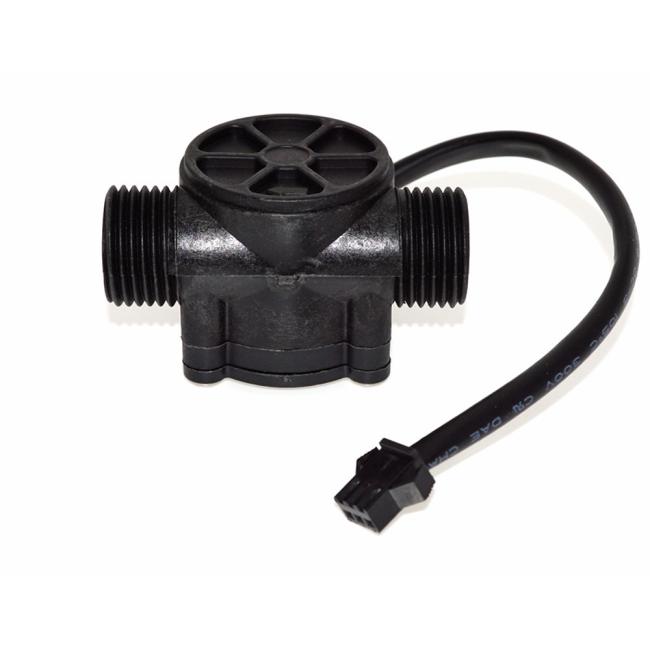

Photos
