DC 28V Blue Color Adjustable DC-DC Voltage Step Up Boost MT3608 Converter Module For Arduino Factory Outlet

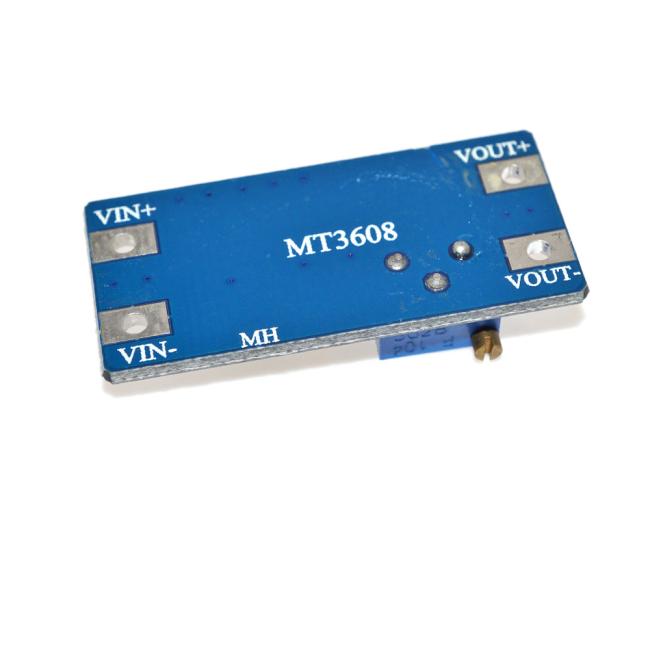

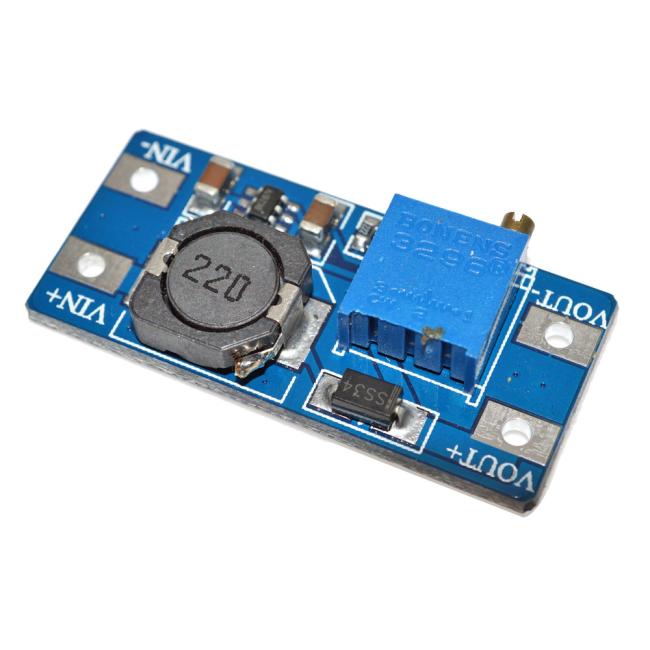

MT3608 DC-DC Step Up Converter Power Module Booster Power MAX output 28V 2A

Description:

These DC-DC Voltage Step Up Adjustable Boost MT3608 Converter's are supplied by ReefLED can be used for a variety of DIY applications including use with rc Helicopters, Quadcopters, Ardu Builds etc.

Included: 1x DC-DC Voltage Step Up Adjustable Boost MT3608 Converter.

The MT3608 is a constant frequency, 6-pin SOT23 current mode step-up converter intended for small, low power applications. The MT3608 switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height.

Internal soft-start results in small inrush current and extends battery life. The MT3608 features automatic shifting to pulse frequency modulation mode at light loads. The MT3608 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload.

Photos
