Dual H Bridge L298N DC Motor Driver TB6612FNG DC 5V Stepper Motor
Price:
USD1.05-1.19/piece
MOQ:
10 Piece/Pieces
Delivery Time:
1-3 workdays after payment
Brand:
OEM
Product Description
Dual H Bridge L298N DC Motor Driver TB6612FNG DC 5V Stepper Motor
Description:
1.Using L298N made by ST company as the control chip,the module has such characteristics as strong driving
ability,low calorific value and strong anti-interference ability.
2.This module can use built-in 78M05 for electric work via a driving power supply part.But to avoid the damage
of the voltage stabilizing chip,please use an external 5V logic supply when using more than 12V driving voltage.
3.Using large capacity filter capacitor,this module can follow current to protect diodes,and improve the reliability
Specification:
| Chip | L298N (ST NEW) |
| Logical voltage | 5V |
| Drive voltage | 5V-35V |
| Logical current | 0mA-36mA |
| Drive current | 2A(MAX single bridge) |
| Storage temperature | -20 to +135 |
| Max power | 25W |
| Weight | 30g |
| Size | 43*43*27mm |

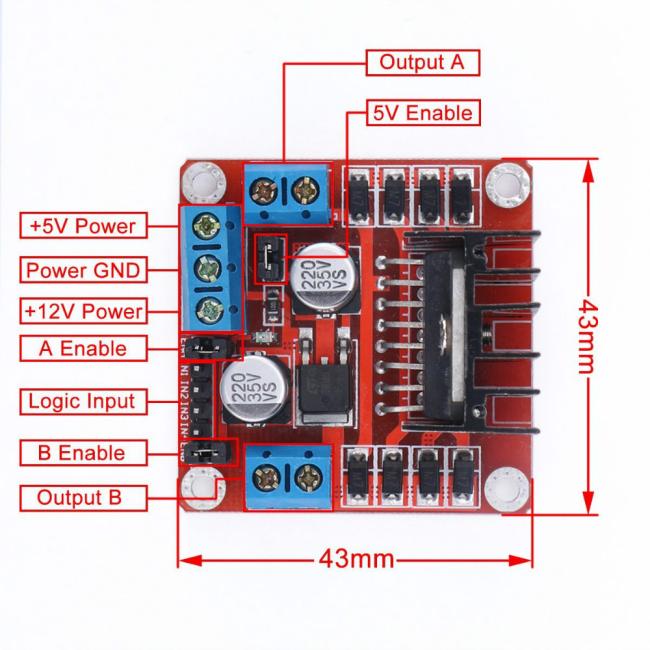

Product Details

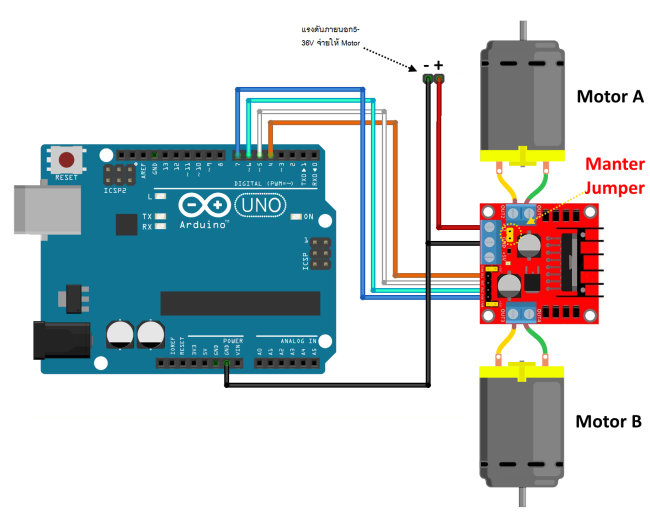

Connection Diagram
