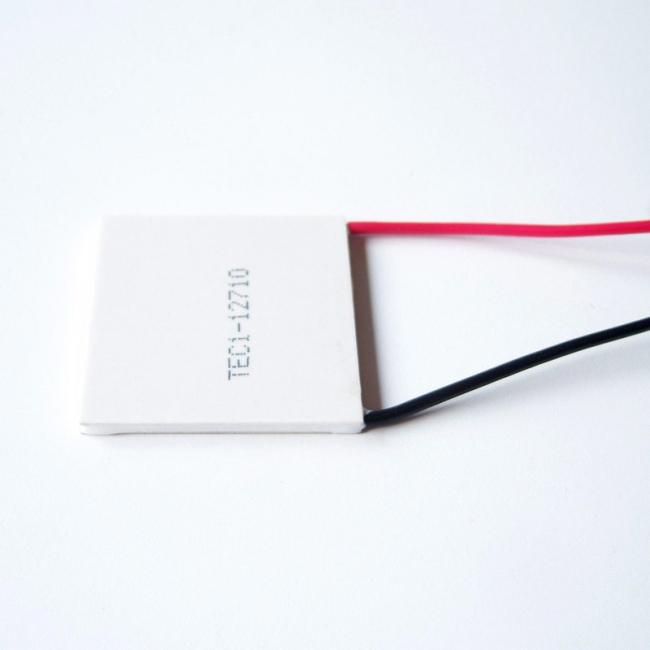

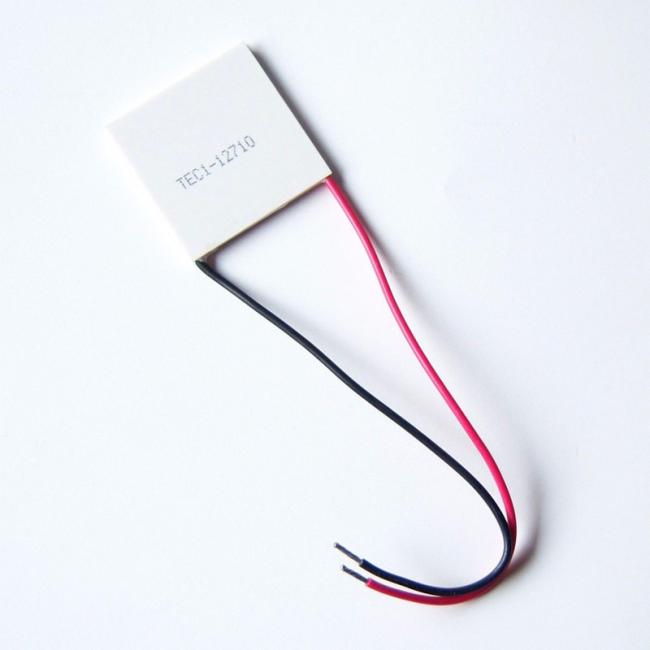

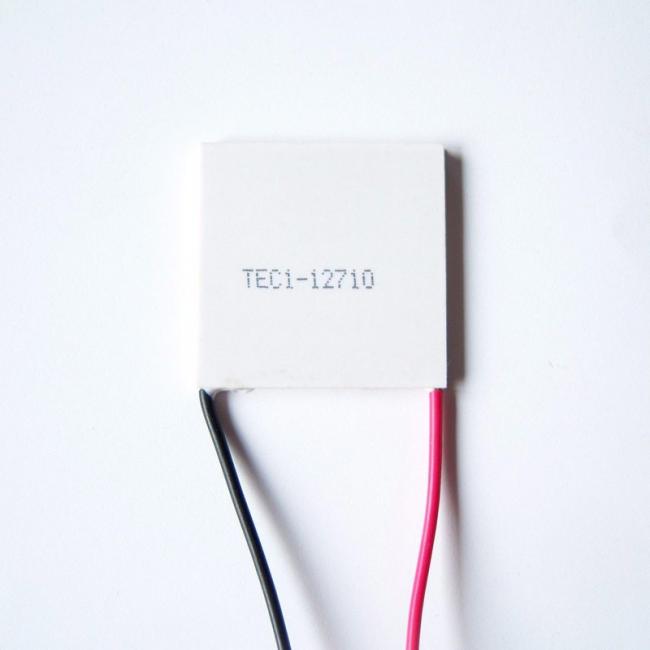

TEC1-12710 127 couples 40 mm × 40 mm size Thermoelectric Cooler Peltier Module

Description:

The 127 couples, 40 mm × 40 mm size single module which is made of our high performance ingot to achieve superior cooling performance and 70 ºC or larger delta T max, is designed for superior cooling and heating applications. Beyond the standard below, we can design and manufacture the custom made module according to your special requirements

Features:

Wire Size: Lead Length 300 ± 5mm RV Standard Wire Single Head 5mm Tinned
Internal resistance: 1.2 ~ 1.5Ω (ambient temperature 23 ± 1 ℃, 1kHZ Ac test)
Maximum temperature difference: △ Tmax (Qc = 0) above 60 ℃.
Operating current: Imax = 10A (15Vmax voltage start)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 92W
Assembly pressure: 85N / cm2
Working environment: temperature range -55 ℃ ~ 83 ℃ (too high ambient temperature will directly affect the cooling efficiency)
Packaging technology: around the standard 704 silicone rubber seal
Packaging standards: foam box packaging, storage conditions Ambient temperature -10 ℃ ~ 40 ℃
Storage conditions: -40 ~ 60 ℃

Application:
Food and beverage service refrigerator
Portable cooler box for cars
Liquid cooling
Temperature stabilizer
CPU cooler and scientific instrument
Photonic and medical systems

Different anti-static package at optional:
1. Full or partial package according as your requirement.
2. Retailing Box package design according to your requirement ( Order > 2000PCS )

Competitive Advantage:

1. Convenient & Friendly Customer Service
2. Low Prices Direct From Factory Suppliers
3. Fast Delivery Around the World.
4. High Quality With Global Standards.
5. 1 Year Factory Warranty
6. Safe Shipping Way and Payment

FAQ:

1. What is the delivery time?
Normally, 1-5 workdays after payment; Special requirement orders, delivery time is negotiable.

2.If the products can’t work after receiving it,what should I do?
We will replace new items for you at once and then we make the judgement for the issue.

3.If the products don’t meet my demand after I received it,can I return it?
Yes,no problem.You can return back to us, we will refund your full payment.

4.what is the warranty?
1-3 months to replace new items for free, 1-2 years repairing free according to different products.

5.Do you accept OEM design?
Yes,we do.We can design according to your requirement.

6.Are you a manufacturer?
Yes,we are.
