PCB 20CM Ruler Soldering Measuring Tool For Electronic Component Surface Mount Black Color
Stocks Soldering Measuring Tool For Electronic Component Surface Mount
Description
Multifunction PCB Ruler Measuring Tool Resistor Capacitor Chip IC SMD Diode Transistor Package Electronic Stocks Soldering Up Surface Mount Component for Electronic Engineers Makers - 20cm/7.87inch
Product features:
PCB Ruler - used for soldering up a surface mount component. Good partners for electronics engineer!
PCB reference ruler - can used at your fingertips.
Standard-thickness FR4, gold plate ruler--has the most common component packages you'll encounter.
Can gauge your wire thicknesses - It has font size guide, trace-width diagram, and a set of AWG-sized drills.
Edges are labeled in inches with 1/8th marks and cm with 0.1cm marks.
Specification:
| Measuring length | 20cm/7.8inches |
| Common resistor and capacitor diode SMD package | 0201, 0402, 0603, 0805, 1206, SMA, SMB, SMC |
| Ordinary IC package | SSOP20, TSSOP24, SOP8, LQFP32, LQFP128P |
| Common MOS, Phase Inverter, Transistor, Crystal Oscillator Package | SOT223,SOT23,SOT89,SOT25,SOT5,3225 |
| Reference Size | Common drilling diameter reference size |
| Compatibility | Suitable for ruler hanging groove |

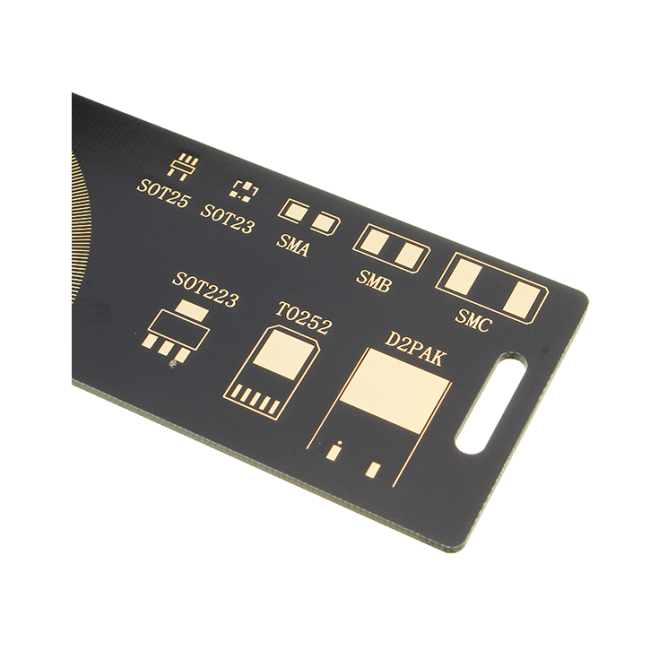

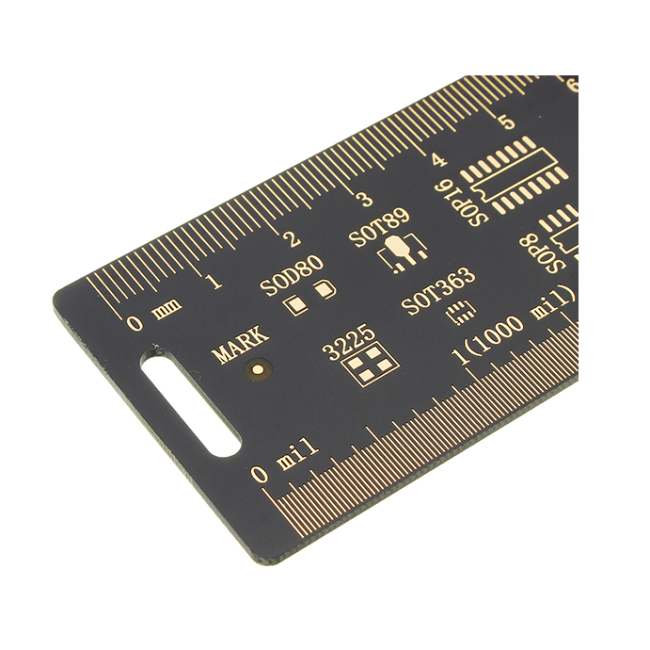

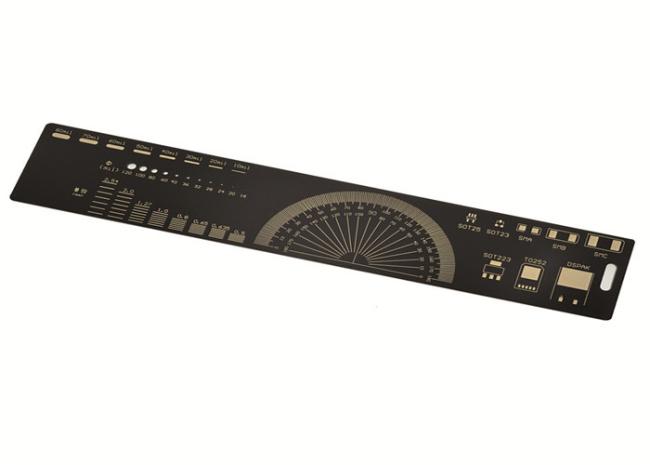

Product Photos
