3 Pin / 4 Pin Electronic Arduino Microphone Module 5V 37 X 31 X1.6MM
Price:
USD0.81-0.92/piece
MOQ:
10Piece/Pieces
Delivery Time:
1-3 workdays after payment
Brand:
OEM
Product Description

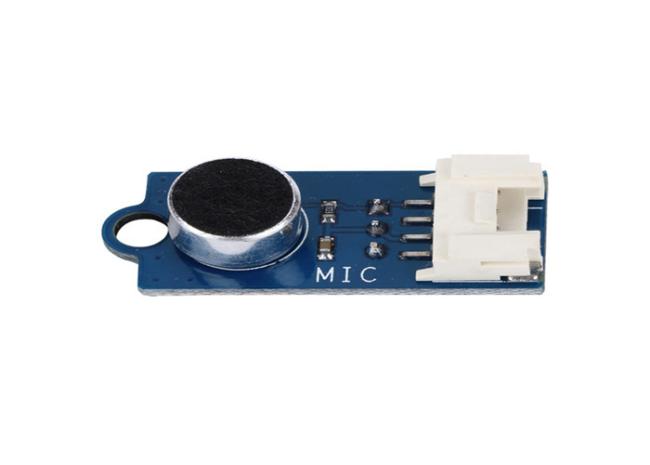

3pin/4pin Electronic Brick Sound Sensor Microphone Mic Module
| Description/Specification | This module can be connected to the analog I / O port, when speaking to the microphone, the analog value will be changed. A recorder can be made by reading and saving the analog value. |
| DEMO | Connect S port of electronic brick of microphone, and we will use the following program to read the analog value. When the value exceeds the threshold, the LED indicator will flash. 1 const int ledPin = 13; // the number of the LED pin 2 const int thresholdvalue=400; //The threshold to turn the led on 3 void setup() { 4 pinMode(ledPin, OUTPUT); 5 } 6 void loop() { 7 int sensorValue = analogRead(A0); //use A0 to read the electrical signal 8 if(sensorValue>thresholdvalue) 9 digitalWrite(ledPin,HIGH); //if the value read from A0 is larger than 400,then light the LED 10 delay(200); 11 digitalWrite(ledPin,LOW); |
Different package at optional:
1. Retailing Package:Anti-static bag
2. Bulking Packing:Plastic Bag Package
3. Retailing Box package design according to your requirement( Order > 3000PCS)
