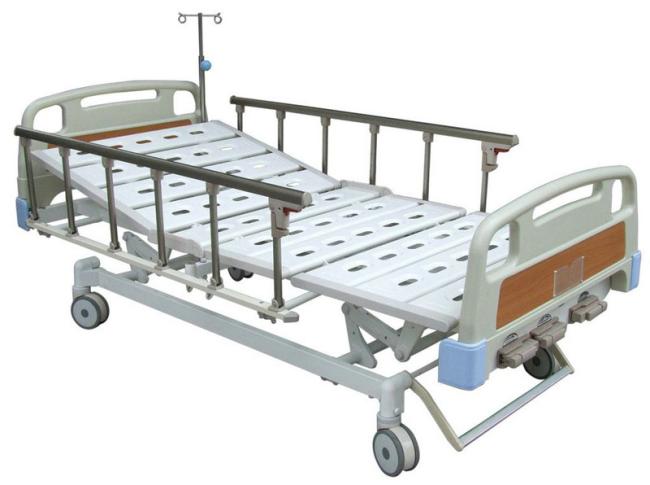

Adjustable Manual Hospital Bed
Adjustable Manual Hospital Bed With 3 Crank , Semi Fowler ICU Sickbed
Quick Detail:
Manual crank bed for hospital use
- CE&ISO certified hospital manual bed
- Foldable cranks for movements operation
- Anti-rust treated manual bed
- Back/Leg/Height adjustable manual bed
- Four 125mm castors with central braking system
Description:
4 pieces divided platform(Or 4 pieces ABS platform)
Head&Foot board: ABS, detachable
Side rails: 2pcs,Aluminum alloy material in full length for protection, collapsible
Four 125mm(150mm) castors with central braking system
3 cranks at foot section for movements of back section, leg section, HI-LO
I.V. drip pole available
Technical parameters:
|
Item |
3-Function Manual Hospital Bed |
|
|
Model |
YA-A16 |
|
|
Technical Parameters(3-Functions) |
Overall size (L*W*H) |
2130*930*500-750mm |
|
Backrest max upward angle |
75°±5° |
|
|
Footrest max upward angle |
40°±5° |
|
|
Height adjustable |
500-750mm |
|
|
Silent wheels with central braking system |
Dia 125mm(5”) |
|
|
Loading capacity |
235kgs |
|
|
Aluminum side rails |
2pcs in full length, collapsible |
|
|
Packing |
Carton or wooden case |
|
|
Standard Accessories |
Headboard/Footboard |
1 pair, ABS |
|
Side rails |
2pcs, Aluminum alloy material, anti-bacteria |
|
|
I. V pole |
1 pc |
|
|
I. V pole sockets |
4 pcs (at least) |
|
|
Wheels |
4 pcs |
|
|
Drainage Hook |
2 pcs |
|
|
Bed board |
1 set |
|
|
Cranks |
3 pcs |
|
|
Plastic Patient Name Card |
1pc at the footboard(Optional) |
|

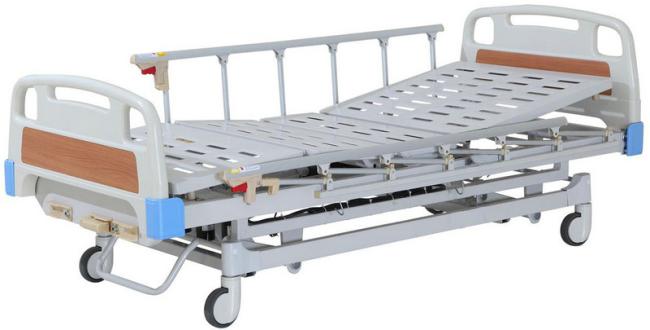

Pictures of bed with Low position:
Bed with other wheels, plastic name card holder at the foot section(Optional)
Packing:
Our factory:
Accessories for bed:
Competitive Advantage:
1. Professional manufacturer and supplier of hospital furniture over 20 years, and most of our products have been awarded with international CE and ISO certificates
2. Always striving the best to find out solutions for hospital furnishing, for example, ICU room, general patient rooms, operation rooms, examining rooms etc. etc.
3. Besides our own models, we also provide OEM/ODM service for some well-known brands
4. We provide 1-2 year warranties and life-time training and after-sales service
