Plastic Corrugated Pipe Production Extrusion Line , Drain Pipe Washing Machine
Plastic Corrugated Pipe Production Line , Drain Pipe Washing Machine Pipe Extrusion Line
Description of PE Corrugated Pipe Extrusion Line:
1.The plastic corrugated pipe extrusion line is used to produce small diameter single wall corrugated pipes of PE, PP, PVC as raw material. The molding corrugated pipe with smooth inside and outside surface, it is ripple at one time by corresponding die.
2.The corrugated pipes and hoses are widely used in electrical cable pipe, washing machine drainage pipe, dust collector pipe and ventilation pipe, etc.
3.This machine is used to produce pvc pe ppsingle wall corugated pipe. It is widely used in our life, It can be used such as threading pipe, drain pipe, Shisha pipe, shrinking pipe and so on.Single wall corrugated pipes, which takes the advantages of high temperature resistance, abrasion resistance, corrosion resistance, high strength
Parameters of Wholesale Plastic PVC PP PE Single Wall Corrugated Pipe Tube Hose Production Extrusion Line
| pipe diameter range(mm) | 4.5-9mm | 9-32mm | 32-50mm |
| extruder model | SJ-30 | SJ-45 | SJ-65 |
| motor power(kw) | 4 | 11 | 18.5 |
| capacity(kg/h) | 10 | 40 | 80 |
| cooling way | water or air | water or air | water or air |
| production speed(m/min) | 6-10 | 8-15 | 10-17 |

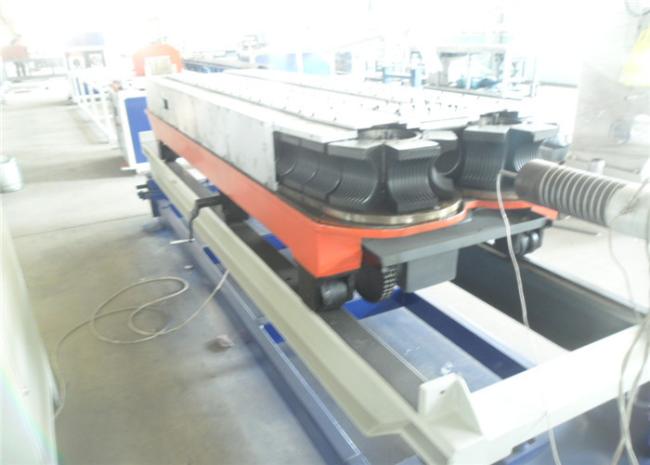

Machine display:
Tag: PE Single Wall Corrugated Pipe Machine Corrugated Pipe Extrusion Line
