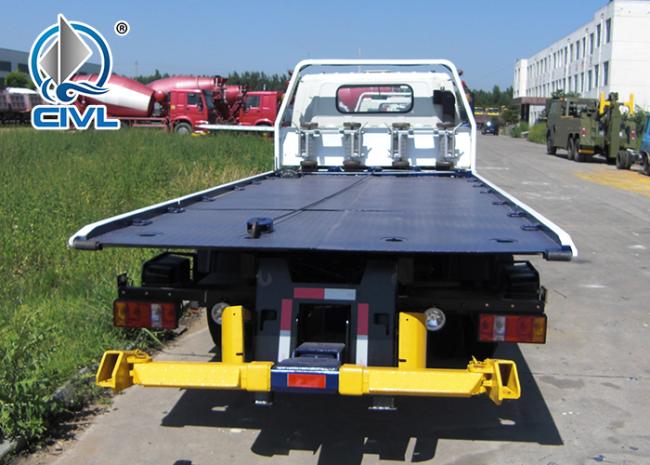

5 Ton Flatbed Tow Truck In White Howo Obstacle Heavy Duty Tow Trucks Flatbed Wrecker Carrier Road Rescue Vehicle
5 Ton Flatbed Tow Truck In White ,Howo Obstacle Heavy Duty Tow Trucks Flatbed Wrecker Carrier Road Rescue Vehicle
Based on the technology from Miller and AATAC in America and TRUK in Britain, we designed and produced the Wrecker Truck Carrier 3T3P.The carrier is mainly made up of Sub-frame/Inner Body/Flatbed Assembly/Under lift and Hydraulic Winch, etc. And all these parts are hydraulically operated completely. It can do such work as carrying, dragging and winding by the actions of elevation, extension, tilting and folding controlled by hydraulic system .With the joint of all kinds of working accessories, it can deal with different kinds of failure vehicles, such as common car, microbus. And owing to the function of carrying and pulling simultaneous, it can deal with two vehicles at the same time, which largely improved the efficiency. The key parts, such as Sub-frame, Inner Body, Flatbed and Under Lift, are all made up with high strength jointing steel. Hydraulic pressure organs come from famous brand.
Description:
1. The road wrecker truck is applied American technology, with strong practicability and good price. The sales volume is increasing fast in recent years.
2. Our road wrecker trucks are divided into several series, platform road removal,mini ones,and heavy ones. They have adopted world advanced technology and cater for many world clients from American, African, Europe etc.
3. Main parts of the vehicle like underlift and booms are adopted HG70 high strength wielding steel.
Specifications:
| Wrecker Model | ST5061TQZKP | ST5062TQZKP | |
| Chassis Model | BJ1069VCJEA-D | BJ1063VCJFA-1 | |
| Out Dimension(L×W×H)mm | 7390×2200×2610 | 7390×2200×2610 | |
| Wheel Base mm | 3800 | 3800 | |
| No. of Tires | 6 | 6 | |
| Specification of Tire | 7.50-16 | 7.50-16,8.25-16 | |
| Approach Angle/Departure Angle | 22°/10° | 22°/10° | |
| Front Overhang/Rear Overhang mm | 1120/2470 | 1120/2470 | |
| Total Mass kg | 6495 | 6495 | |
| Reorganize and outfit quality kg | 5100 | 5400 | |
| Platform | Platform Dimension mm | 5450×2200 | 5450×2200 |
| Extension Stroke mm | 3100 | 3100 | |
| Carrying Mass kg | 3000 | 3000 | |
| Min. Inclination Angle(folded) | 8° | 8° | |
| Under-lift | Max. lifting mass kg | 1500 | 1600 |
| Rating lifting mass fully extended kg | 1100 | 1200 | |
| Max. Effective Length mm | 1705 | 1705 | |
| Extension Stroke mm | 1200 | 1200 | |
| Range of Inclination Angle | -8°～10° | -8°～10° | |
| Rating Towing Mass kg | 6000 | 6000 | |
| Rating Pulling Mass of Winch KN | 40 | 40 | |
| Length of Cable Wire m | 20 | 20 | |
Advantages:
(1). Ensure the intensity and strength of these.
(2). Decreasing the curb weight so that reduce the fuel consumption.
