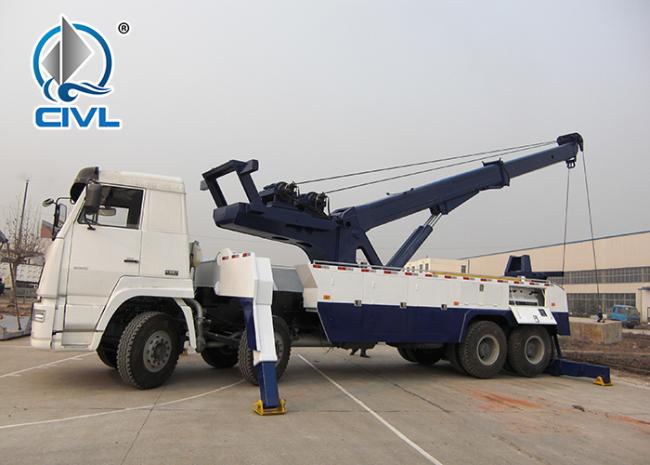

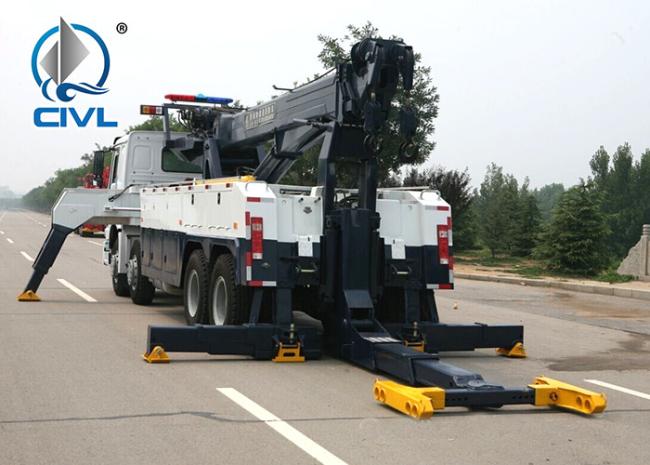

Manual HOWO Wrecker Tow Truck 8X4 with Sewing out legs Wrecker Truck Tow Wrecker Vecihle
Manual HOWO Wrecker Tow Truck 8X4 with Sewing out legs Wrecker Truck Tow Wrecker Vecihle
1. The road wrecker truck is applied American technology, with strong practicability and good price. The sales volume is increasing fast in recent years.
2. Our road wrecker trucks are divided into several series, platform road removal,mini ones,and heavy ones. They have adopted world advanced technology and cater for many world clients from American, African, Europe etc.
3. Main parts of the vehicle like underlift and booms are adopted HG70 high strength wielding steel.
Specification:
| Wrecker Model | ST5310TQZKZ | ST5310TQZMZ | |
| engine Power kw/PS | 221,213 ,247 | 206,213,199,213,199 | |
|
Outline dimension(L×W×H) mm |
11505×2495×3630 | 11100,10700×2500×3600 | |
| Wheelbase mm | 1800+4700+1350 |
1800+4600+1350 1800+4200+1350 |
|
| Track(Front/Rear) mm | 2005/1865 | 2006/1850 | |
| No. of Tire | 12 | 12 | |
| Specification of Tire | 12.00-20 | 11.00-20 12.00-20 | |
| Approach Angle/Departure Angle | 16°/14° | 18°/13° | |
| Front Overhang/Rear Overhang mm | 1555/2100 | 1510/1840 | |
|
Free Loading |
Reorganize and outfit quality Kg | 27800 | 25870 |
|
Boom |
Max. Lifting Mass Kg | 20000 | 20000 |
| Extension Stroke mm | 3510 | 3510 | |
| Max. Lifting Height mm | 9500 | 9500 | |
| Max. Inclination Angle | 50° | 50° | |
| Rotating Angle | 360° | 360° | |
| Range of Inclination Angle | 0~50° | 0~50° | |
|
Under lift |
Max. Lifting Mass Kg | 16000 | 16000 |
| Rating Lifting Mass Kg | 12000 | 12000/11500 | |
|
Rating lifting mass fully extended Kg |
7700 | 7700/7200 | |
| Max. Effective length mm | 2980 | 2980 | |
| Extension Stroke mm | 1640 | 1640 | |
| Range of Inclination Angle | -10°～93° | -10°～93° | |
| Folding Angle | 103° | 103° | |
| Outriggers | Longitudinal Span between Front Outrigger and Rear Outrigger (mm) mm | 7585 | 7485/7085 |
| Transverse Span of Front Outriggers (mm) | 5620 | 5620 | |
| Transverse Span of Rear Outriggers mm | 4225 | 4225 | |
| Rating Towing Mass Kg | 31000 | 31000 | |
| Rating Pulling Force KN | 100×2 | 100×2 | |
| Length of Cable Rope m | 40 | 40 | |
Advantages:
(1). Ensure the intensity and strength of these.
(2). Decreasing the curb weight so that reduce the fuel consumption.
The tow body of wrecker ST5310TQZCZ is fully hydraulic. It receives its power by means of a Power Take-Off/Pump combination attached to the truck transmission. The PTO and pump is connected by drive line. The high pressure oil which is from pump flows through direction valves, hydraulic rotary swivel and hydraulic valves into all function components. Each function of the wrecker can be controlled from the Control Stations located in left and right rear compartments of the body. Each Control Station of both sides has all functions. The Control Handles are clearly marked as to their functions and directions.
