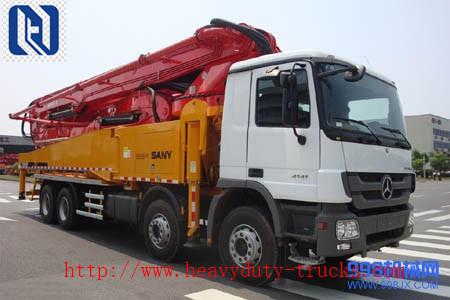

47m Boom Concrete Pump Truck 5 Sections RZ-type 32Mpa Oil Pressure
47m Boom Concrete Pump Truck 5 Sections RZ-type 32Mpa Oil Pressure Algeria/Djibouti
dorinyang@road-machine.com
International Market:Ethiopia/Kenya/Nigeria/Algeria/Angola/Benin/Botswana/Burkina Faso/Burundi/Cameroon/Cape Verde/Chad/Comoros/Congo/Djibouti/Egypt/Equatorial Guinea/Eritrea/Gabon/Gambia/Ghana/Guinea-Bissau/Ivory Coast/Lesotho/Liberia/Madagascar/Malawi/Mali/Mauritania/Mauritius/Mozambique/Namibia/Niger/Rwanda/Senegal/Seychelles/Somalia/South Sudan/Swaziland/Tanzania/Togo/Uganda/Zambia/Zimbabwe
Description:
1. In 1982, the China’s first concrete pump truck rolled off the production line in Shantui Chutian.
2. Sino Heavy Machinery CO., LTD(SHMC) is the authorized company of Shantui. In 2013, Shantui-SHMC S9
concrete pump trucks made greater achievements.
3. Advantages:
A. Energy Saving. Supporting overall power matching and automatic adjustment of engine and oil pump; Design
with a motor driven radiator to ensure automatic control, high efficiency and energy conservation; Average fuel
consumption for pumping operation reduced by 20%.
B. Stand wear and tear.
End elbow-designed with patented technology to ensure prolonged life time up to 30,000m3.
Concrete piston- Made of high-strength composite materials to ensure prolonged life time to 25,000m3.
Glasses plate-Mounted with cemented carbide to ensure prolonged life time up to 50,000m3.
Cutting ring-Mounted with cemented carbide to ensure prolonged life time up to 25,000m3.
Conveyor cylinder-Inner chrome-plated coating 30um, hardness>HV900, with extended life cycle up to 15,000m3.
Specifications:
|
Model |
Concrete Pump Truck with 47m Boom |
|
Dimension L*W*H |
12000*2500*4000 |
|
Truck GVW |
33000kg |
|
Folding Type |
5 sections RZ-type |
|
Boom Swirling Angle |
90/180/180/250/180 . |
|
Boom Vertical Height |
46.8m |
|
Boom Horizontal Length |
42.8m |
|
Boom Vertical Depth |
30m |
|
Minimum Boom Height(Extended) |
9.6m |
|
Turntable Rotation Angle |
365 . |
|
Outrigger Operating Method |
X-shaped outrigger |
|
Maximum Span Front Outrigger(Extended) |
9.23m |
|
Maximum Span Rear Outrigger(Extended) |
9.99m |
|
Theoretical Concrete Output |
170m3/h with high pressure 120m3/h with low pressure |
|
Theoretical Pumping Pressure |
High pressure: 12Mpa Low pressure:7Mpa |
|
Conveyor Cylinder Bore |
230mm |
|
Conveyor Cylinder Stroke |
2000mm |
|
Hopper Capacity |
600L |
|
Oil Pressure |
32Mpa |
|
Remote controller |
Germany HBC |
|
Hydraulic Oil Cooling |
Air cooling |
|
Model of chassis |
Mercedes-Benz ACTROS3341 |
|
Engine Power |
300kw/1800rpm |
|
Emission Standard |
Euro III/Euro IV |
