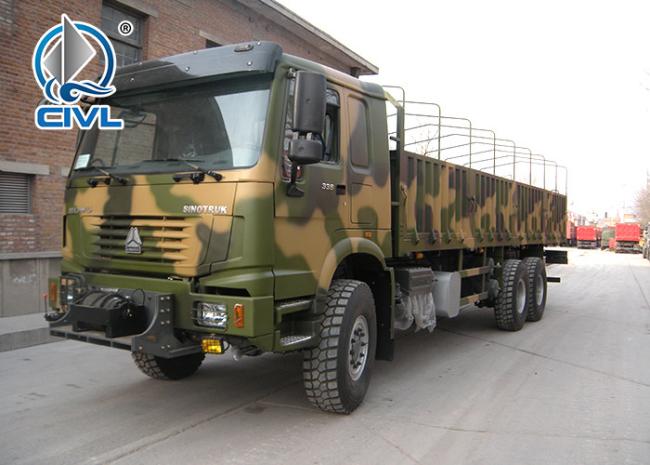

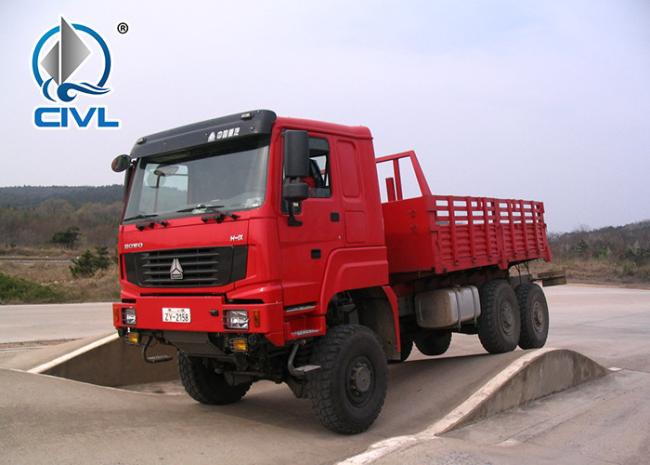

SINOTRUK 6 x 6 336hp / 380hp All Wheel Drive Heavy Duty Trucks EURO II Emission Standard
SINOTRUK 6 x 6 336hp / 380hp All Wheel Drive Heavy Duty Trucks EURO II Emission Standard
Description:
- SINOTRUCK ALL WHEEL DRIVE series trucks own the elegant appearance, strong operation system and excellent safety.
- We mainly deal with heavy duty trucks /all spare parts and service.We supply HOWO, , KING, GOLDEN PRINCE, HOHAN series 4X2, 6X4, and 8X4 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks, log trailers tractors, terminal tractors, etc. Our products arrange from 190 horse power to 410 horse power, and loading capacity cover from 5 tons to 50 tons.
Specification
|
Representative vehicle models |
ZZ1311M3861V |
|
|
CAB |
Model |
L2000 |
|
Type |
High cab |
|
|
Engine |
Model |
WD615.47 |
|
Rated power kW/rpm |
371hp/336hp |
|
|
Maximum torque Nm/rpm |
1160/1100-1600 |
|
|
Displacement L |
9.726 |
|
|
Clutch |
Φ 420 Coil spring clutch |
|
|
Transmission |
China National heavy duty truck HW Series |
|
|
Front axle |
HF7 |
|
|
Driving axle |
HW1279 |
|
|
Steering system |
ZF8098 . |
|
|
Electrical system |
24V : 12V/165Ah ×2 |
|
|
Tire |
11.00-20 OR 12.00-20 |
|
|
Fuel tank capacity L |
350 |
|
|
Curb weight (whole vehicle / Chassis) kg |
12270/10520 |
|
|
Total mass kg |
31000 |
|
|
Rated contained mass kg |
18600 |
|
|
Vehicle dimensions (l x w x h) mm |
10970x2490x3935 |
|
|
Chassis dimensions (l x w x h) mm |
10970x2490x3935 |
|
|
Wheel base mm |
1800+3800+1350 |
|
|
Front suspension / Rear suspension (vehicle / Chassis) mm |
1320/2700 |
|
|
Track width (front / After) mm |
2041/1850 |
|
|
Minimum ground clearance mm |
247 |
|
|
Approach angle / Angle of departure (whole Vehicle / Chassis) ° |
20.5/11 |
|
|
Maximum speed km/h |
90 |
|
|
Maximum grade ability % |
24 |
|
|
Minimum turning diameter m |
18.8 |
|
|
Box dimensions (l x w x h) mm |
8600x2280x800 |
|
|
Container volume m3 |
15.6 |
|
|
Notes |
Optional WD615.62 |
|
Off-road vehicle/ all terrain vehicle/ sport utility vehicle /go-anywhere vehicle /cross country vehicle/Sinotruk/ Sinotruck/heavy equipment
Other Truck and trailer can be provide according to your request,
freely contact me for the informations and quotations.
