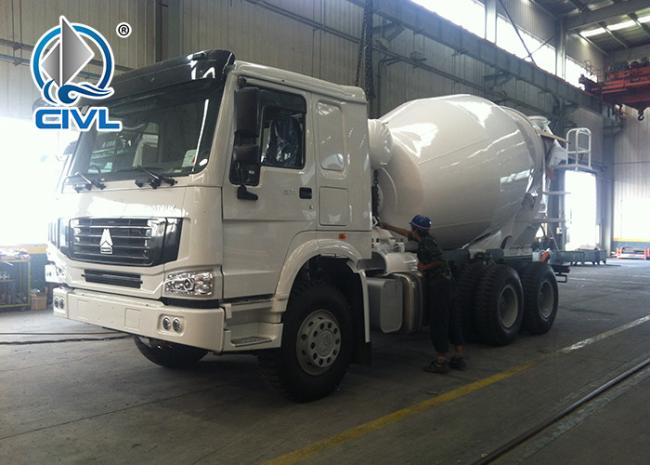

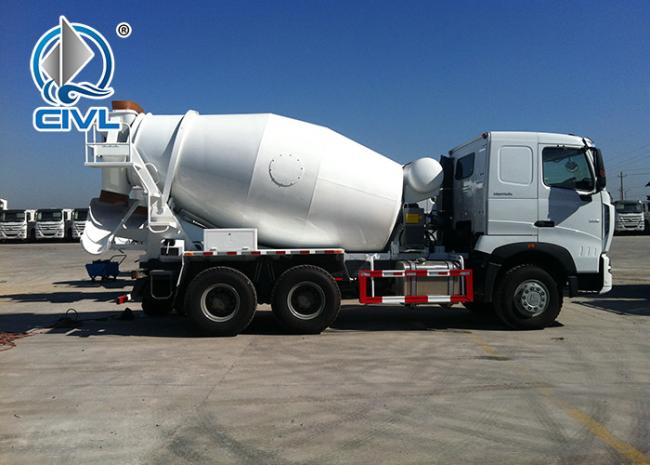

Sinotruk HOWO 6x4 Concrete Mixer Truck with Euro III standard ZZ1257M3641W, tank volume 10m3
Sinotruk HOWO 6x4 Concrete Mixer Trucks in White , 8 Cubic Meters
International Market:Ethiopia/Africa/Uganda/Chad/Zambia/Tanzania/Liberia/Myanmar
/Cambodia/Thailand/Malaysia
Quick Details
|
Condition: |
New |
Horsepower: |
251 - 350hp |
Drive Wheel: |
6x4 |
|
Transmission Type: |
Manual |
Emission Standard: |
Euro 3 |
Engine Capacity: |
> 8L |
|
Fuel Type: |
Diesel |
Brand Name: |
sinotruk |
Size: |
standard size |
|
Gross Vehicle Weight: |
25000 |
Design: |
High stability and safety |
Engine: |
Powrful and reliable engine |
|
Power: |
336HP,290HP,etc |
Kerb weight (kg): |
12500 |
max speed: |
90,102 |
|
Approach/departure angle (°): |
15/46 |
Maximum speed: |
101 |
color: |
optional |
|
Service: |
friendly service |
Delivery: |
whintin 45 days after payments |
||
Description:
- SINOTRUCK HOWO series trucks own the elegant appearance, strong operation system and excellent safety.
- Sino Heavy Machinery Co,Ltd is the authorized company of SINOTRUK(CNHTC), and mainly deal with heavy duty trucks /all spare parts and service We supply HOWO, , KING, GOLDEN PRINCE, HOHAN series 4X2, 6X4, and 8X4 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks, log trailers tractors, terminal tractors, etc. Our products arrange from 190 horse power to 410 horse power, and loading capacity cover from 5 tons to 50 tons.
Specifications:
|
HOWO A7 Mixer Truck Configuration |
||
|
Cab |
A7-W(Low Floor Extended Cab) |
|
|
Engine |
Model |
D10.34 High Pressure Common-rail Electric Fuel Injection System |
|
Type |
In-line,Six Cylinders,Water Cooling,Turbocharged Inter-cooled,Turbocharger Centrally-mounted |
|
|
Cylinder Diameter×Stroke |
126mm×130mm |
|
|
Total Displacement |
9.726L |
|
|
Rated Power/Speed |
249/1900 |
|
|
Max.Torque/Speed |
1490/1200-1500 |
|
|
Emission Standard |
EuroⅢ |
|
|
Clutch |
430 Pull-type Diaphragm Spring WABCO Operating System |
|
|
Gearbox |
HW19710(Non full synchronizer) |
|
|
Front Axle |
Type |
HF9 |
|
Braking type |
Disc |
|
|
Suspension |
Front Suspension |
Multi-leaf Spring Suspension |
|
Rear Suspension |
Single Shaft Double Airbag American Style Air Suspension |
|
|
Steering System |
ZF8098 Steering gearbox, ZF Steering Pump |
|
|
Drive Axle |
Model |
AC16 |
|
Speed Ratio |
4.77 |
|
|
Tyre&Steel Ring |
12.00R20 Radial Tyre, Strengthened Steel Ring |
|
|
|
Braking type |
Drum |
|
Other Configurations |
Full Power PTO |
|
|
ABS System |
||
|
EVB Exhaust Brake Auxiliary System |
||
|
165AH Storage Battery |
||
|
Electric Lifting |
||
|
400L Fuel Tank |
||
Trucks/ Heavy Trucks/Heavy Duty Truck/Special Vehicles/Tipper/Dumper/Dump Truck/Dump Tipper/Tipper Truck, Special Dump Truck/Tractor Truck/Trailer/Prime Mover/Semi Trailer/Special Trucks/Lorry/Cargo Truck/Van/Goods Vehicles/Lorry Truck/Concrete Mixer/Cement Mixer/Mixer Truck/Truck Mixer/Concrete Pumper/ Concrete Mixer Truck/Mini Truck/P/Transporter/Water Tank/Tank Truck/Oil Tank/Powder Tank /HOWO Refuelling Truck/Water Tank Truck/Sprinkler/Road Sprinkler/Road Sweeper/Terminal Truck/Terminal Tractor/Garbage Compactor/Garbage Truck/Refuse Compactor/Bulldozer/Wheel Loader/Grader/Excavator/ Crane/Truck/Truck Crane/Refrigerated Truck/Nsulated Truck/Box Truck/Mobile Telecommunication Truck/Special Automobiles/ Low Bed Trailer with Two Axles/40‘ Contrainer Trailer/
Workover Rig Chassis For Oil Field/ Powder Material Transportation Truck, Wood Transportation Truck, Vehicle Crane,
