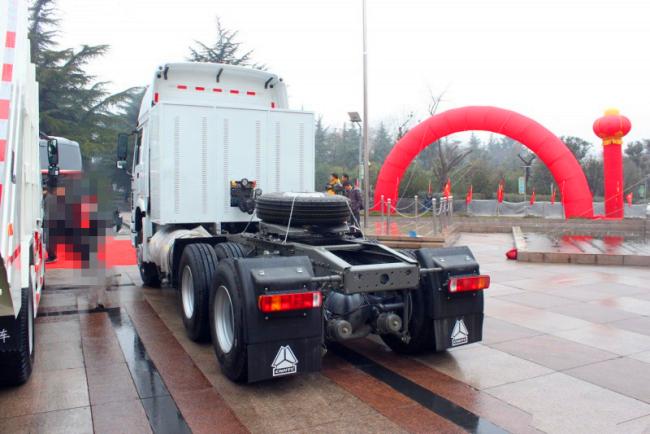

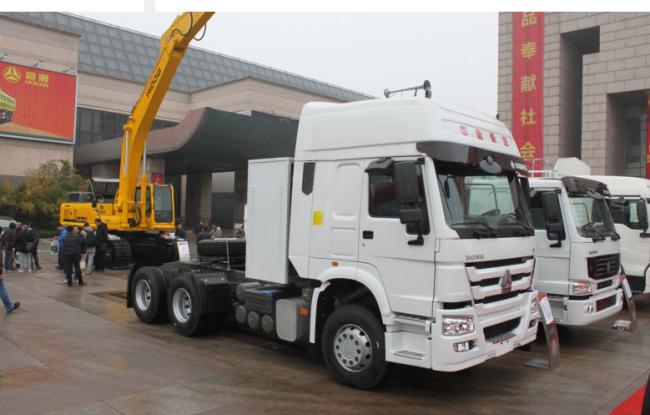

420HP Cabin Triangle Tire HOWO 6x4 prime mover MAN technology tractor truck,prime mover and trailer,semi truck tow
Price:
negociable
MOQ:
1
Delivery Time:
Within 35 days
Brand:
CIVL
Product Description
Brand Description
Howo series products are made by Sinotruck with MAN`s techinique from Germany. Both frames and axles are produced by techniques originating from Germany.
series products feature lots of heavy duty trucks, tippers, mining tippers, tractor trailers, cargo trucks, cement mixer trucks, garbage trucks, fire fight trucks, among others. With respect to various types of trucks, different powers, namely, 266, 290,336,371 as well as 420HP are readily available. We also have a wide selection of driving modes featuring 4x2, 4x4, 6x2, 6x4,8x4.
Advantaged by the high quality and competitive price , our products have been exported to more than 100 countries. Our customers ascribe their high-efficiency work to our products, which helps us earn a good reputation.
series products feature lots of heavy duty trucks, tippers, mining tippers, tractor trailers, cargo trucks, cement mixer trucks, garbage trucks, fire fight trucks, among others. With respect to various types of trucks, different powers, namely, 266, 290,336,371 as well as 420HP are readily available. We also have a wide selection of driving modes featuring 4x2, 4x4, 6x2, 6x4,8x4.
Advantaged by the high quality and competitive price , our products have been exported to more than 100 countries. Our customers ascribe their high-efficiency work to our products, which helps us earn a good reputation.
Advantage of product
1. Powerful engine provide amazing towing power even whilst low rotation speed .
2. Axles and Tires mady with MAN`s techinque, excellent overloading capacity
3. 8+8 frame made by High strength alloy steel, key parts has been reinforced, it can fit very rough road.
4. Cabin adaopt BENZ techinque, confortable and safety for driver
Specifications
| Model | ZZ4257N3247N1B |
| Weight in kg | Curb weight :8800kg |
| Full rated:25000kg | |
| Towed mass:40000kg | |
| Dimension | Overall (mm) L*W*H 6985*2496*3210(2960;3500,3760,3980) |
| Wheel base:3200+1400mm | |
| Minimum ground clearance:280mm | |
| Performance | Max.speed: 90-102km/h |
| Economic speed: 72-89km/h | |
| Max.gradeability:25% | |
| Minimum turing circle:15m | |
| Engine | Model D1.34-31;D12.38-30 |
| MAX Output 420HP |
|
| Max torque(Nm/RPM) 1490/1200-1500;1650/1100-1500 |
|
| Transmission: | HW19715CL |
| Clutch | 430mm |
| Rear axle model | MCY13Q |
| Rear axle ratio | 4.11;3.7;3.36;3.08 |
| Fuel capacity | 400L |
| Overhang(Front sping/Rear spring) | 9/12;4/12;4/-;3/12;3/-;3/5 |
| Tyres | 315/80R22.5 |
| Frame section | 270x85x8mm |
| Driving mode | 6x4 |
