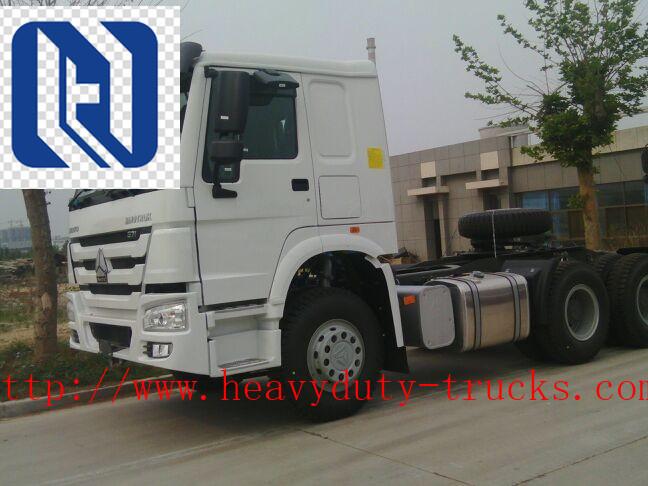

336 HP Towing 30 Ton 4 x 2 Prime Mover Truck With Radius Tires
336 HP Towing 30 Ton , 4 x 2 Prime Mover Truck With Radius Tires
Brand Description
Howo series products are made by Sinotruck with MAN`s techinique from Germany. Both frames and axles are
produced by techniques originating from Germany.
series products feature lots of heavy duty trucks, tippers, mining tippers, tractor trailers, cargo trucks, cement
mixer trucks, garbage trucks, fire fight trucks, among others. With respect to various types of trucks, different
powers, namely, 266, 290,336,371 as well as 420HP are readily available. We also have a wide selection of
driving modes featuring 4x2, 4x4, 6x2, 6x4,8x4.
Advantaged by the high quality and competitive price , our products have been exported to more than 100
countries. Our customers ascribe their high-efficiency work to our products, which helps us earn a good
reputation.
Advantage of product
1. Powerful engine provide amazing towing power even whilst low rotation speed .
2. 8+8 frame made by High strength alloy steel, key parts has been reinforced, it can fit very rough road.
3. Cabin adaopt BENZ techinque, confortable and safety for driver
Specifications
|
Model |
ZZ4187M361GD1 |
|
weight in kg |
Curb weight :3500kg |
|
|
Full rated:18000kg |
|
|
Towed mass:27900/33900kg |
|
Dimension |
Overall L*W*H 6025*2496*3035(3335,3535,3830) |
|
|
Wheel base:3600mm |
|
|
Minimum ground clearance:230mm |
|
Performance |
Max.speed:110km/h |
|
|
Economic speed:60-85km/h |
|
|
Max.gradeability:35% |
|
|
Minimum turing circle:14m |
|
Engine |
Model:MC07.24-40/MC07.28-40 |
|
|
Net power:173KW/2300RPM;203KW/2300RPM |
|
|
Max torque:925Nm/1200-1800RPM |
|
Transmission: |
HW13710L |
|
Clutch |
430mm |
|
Rear axle model |
MCY13 |
|
Rear axle ratio |
4.11 |
|
Fuel capacity |
400L |
|
Overhang(Front sping/Rear spring) |
3/4;3/5;3/10+9;3/2+;11/10+9 |
|
Tyres |
11.00-20/11.00R20/12.00-20/12.00R20/12R22.5 |
|
Frame section |
Front 965mm Rear 766X270X85X10 |
|
Driving mode |
0 |
Other Construction machinery can be provide according to your request, freely contact me for the informations and quotations.
International Market:Ethiopia/Africa/Uganda/Chad/Zambia/Tanzania/Liberia/Myanmar
/Cambodia/Thailand/Malaysia
