6 x 4 Concrete mixing truck 380HP oncrete cement mixer truck SINOTRUK 8 CBM Volume Tank Cement Mixer Truck
8 CBM/m³ Volume Tank Concrete Cement Mixer Truck 6 x 4 Driving With 380HP Engine
The vanes and tank are made bywear-resisting steel ,5mm , very solide
Hydraulic system imported from Italy
. High speeds of unloading and loading speeds
Lowest concrete mixer machine price/Best quality 8x4 cement truck
Professional factory,excellent quality
applying the world advanced heavy duty truck key technology
. the main assemblies are harmonious, unified and reliable,
. better safety, comfortability, easy to operate, low fuel consumption and easy to maintain
. good after sales service and technical assistance
Specifications
| Overall Dimensions | 8840mm*2495mm*3800mm(L*W*H) | ||
| Tare Weight | 11860kg | Payload | 20000kg |
| Front Overhang | 1500mm | Rear Overhang | 2365mm |
| Wheelbase | 3625mm+1350mm | Track (F/R) | 2022mm/1830mm |
| CHASSIS | |||
| Chassis Brand | SINOTRUK HOWO | ||
| Chassis Model | ZZ1257M3641W, driving type 6x4 | ||
| Cab | HW76, left hand drive, air-conditioner, one sleeper | ||
| Engine | SINOTRUK WD615.87, 290hp, Euro II emission standard, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, displacement 9.726L | ||
| Gear Box | HW15710, No. of speeds: 10 forward & 1 reverse | ||
| Traversing Mechanism | German ZF8098, turning system pressure 18MPa | ||
| Rear Axle | ST16 tandem axle, rated load 2x13ton, ratio 5.73 | ||
| Wheels and tires | Rim 8.5-20; tire 12.00-20, 10 units; Spare wheel carrier: with one spare wheel | ||
| Brakes |
Service brake: Dual circuit pneumatic brake; |
||
| MIXING SYSTEM | |||
| Mixing Volume | 8cbm | ||
| Water Tank Volume | 400L | ||
| Hydraulic Pump | Brand: BONFIGLIOLI, Italy | ||
| Motor | Brand: BONFIGLIOLI, Italy | ||
| Speed Reducer | Brand: BONFIGLIOLI, Italy | ||
| Mixing Drum | Body steel plate thickness 6mm, Front end thickness 8mm. | ||

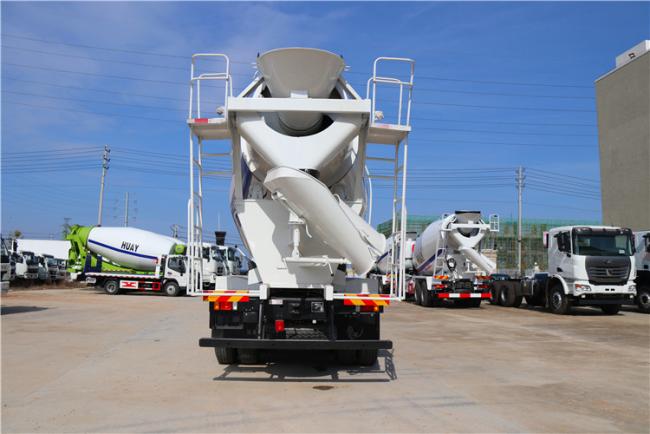

Photos
Advantage
1. the satisfied product with high level standard;
2. the full aspect service from order to shipping;
3. give customer most suitable advice when customer has special needs for your transportation or construction;
4. help customer to get the related spare parts of trailer or tractors if customer needs.
we are waiting for you to get this ideal products and best quotation!
We own trucks with Euro 2/ Euro 3/Euro 4 emission standard, major in tractor truck, dump truck, oil tank, concrete mixer truck, special truck etc.
Engine Model: WEICHAI, CUMMINS
Power scope: 270HP-480HP;
Drive model: 4x2, 6x2, 6x4, 8x4, etc.
According to different area and road situation, we will recommend the suitable product for you.
Other products:
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 54873020, 54798871, 54798867, 54633157, 54622108, 54621778, 54621524, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
