4m3 - 16m3 Sewage Sewage Suction Truck Dumping System With High Pressure Italian Jurop

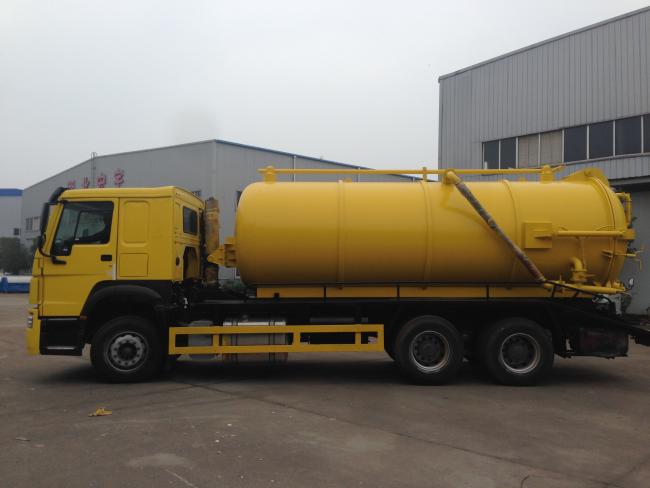

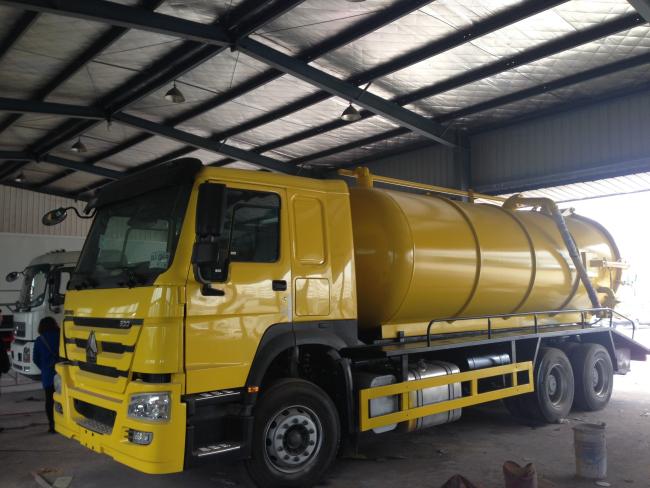

Sinotruk Howo 6x4 Vacuum Truck – 15 CBM

Chassis Model

ZZ1257M4647C (Left Hand Driving Type)

Production Year

2015, new truck.

Cabin

HW76 cab, with one sleeper and  two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts,  adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.

Engine

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine

Engine model: WD615.87, 290HP, Euro 2

6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 11.592 L

Transmission

HW15710, 10F & 2R.

Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering

ZF power steering, modol ZF8118, hydraulic steering with power assitance

Front Axle

HF9, 1x9000 KGS, Drum Brake

Steering with doubleT-cross section beam

Rear Axle

HC16, 2x16000 KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

Ratio:4.8

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members

Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres

12.00R20, radial tyres with one spare tyre

Fuel Tank

400L

Suction Sewage Tank

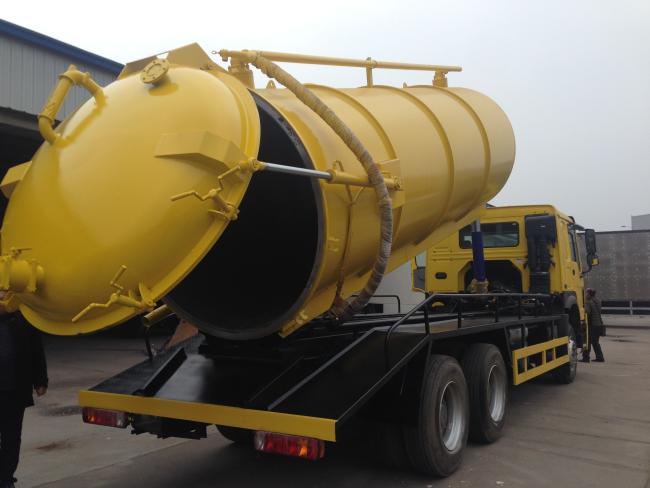

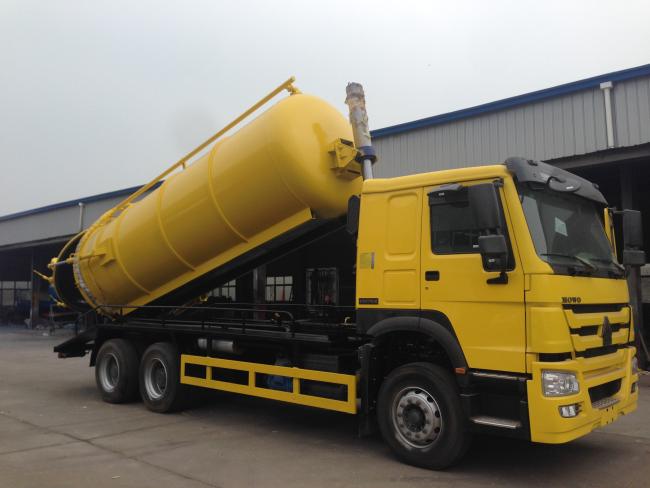

15 CBM, with rear back hole, and anti-static, with Jurop Vac. Pump PN84D

Overall Dimension

8800*2550*3200 mm
