Prime Mover Truck Tractor Commercial Mover Truck Big Heavy Tractor Hulage Truck Cargo Cum Crew
Prime Mover Truck Tractor Commercial Mover Truck Big Heavy Tractor Hulage Truck Cargo Cum Crew
Description:
1.SINOTRUCK HOWO all wheel drive tractor truck series trucks own the elegant appearance, strong operation system and excellent safety.
2.Sino Heavy Machinery Co,Ltd is the authorized company of SINOTRUK(CNHTC), and mainly deal with heavy duty trucks /all spare parts and service We supply HOWO, , KING,
GOLDEN PRINCE, HOHAN series 4X2, 6X4, and 8X4 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks, log trailers tractors, terminal tractors, etc.
Our products arrange from 190 horse power to 410 horse power, and loading capacity cover from 5 tons to 50 tons.
Specification:
|
Model |
ZZ4187M3517C1 |
|
|
Dimension(lenght x width x height)(mm) |
6110X2496X2958 |
|
|
Gross weight (kg) |
18000 |
|
|
Total weight(kg) |
7100 |
|
|
Max speed (km/h) |
102 |
|
|
Wheelbase(mm) |
3500 |
|
|
Engine |
Mode |
WD615.97C |
|
Rated engine power(kW/r/min) |
221/1900 |
|
|
Max torque (N.m/r/min) |
1340/1200~1500 |
|
|
Clutch |
φ430mm diaphragm spring clutch |
|
|
Gearbox |
Mode |
HW13710 |
|
Ratio |
10.73 7.98 5.91 4.38 3.29 2.45 1.82 1.35 1.00 0.75 R1 10.49 R2 2.39 |
|
|
Drive axle |
HW1249 single rear axle ,i=3.91 |
|
|
Steering |
ZF8098 |
|
|
Transfer |
mode |
1200 |
|
High-grade/low-grade ratio |
1.00/1.75 |
|
|
Brake type |
service braking; dual circuit compressed air brake; parking brake(hand brake), spring energy air cut brake |
|
|
Cab |
HOWO76 cab |
|
|
Electric system |
HOWO electric system ,24V,negarive grounded |
|
|
Tire |
12.00-20 |
|
|
Fuel tank(L) |
400 |
|
|
Option engine model |
WD615.92C,WD615.97C |
|

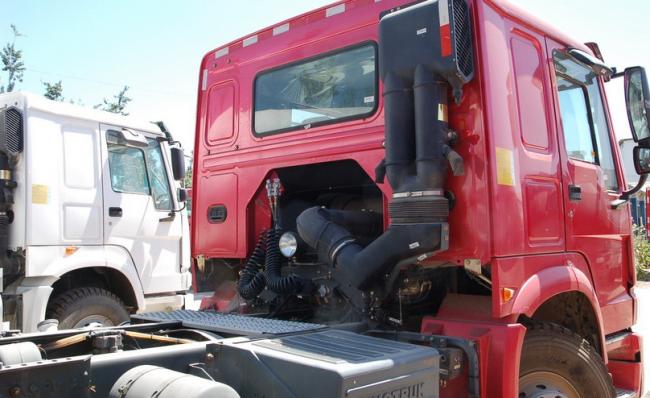

Photo:
With over 51 years of ecperience ,we have become one of the key manufacturers of trucks and road-machines in China .
Exporting to more than 50 countries for 14 years .
For more information ,contact us now.
Pre-service:
- Inquiry and Consulting support.
- Sample testing support.
- View our factory.
- Design various solutions as buyer's requirement.
After-sale service:
- Training how to use and maintain the truck.
- Our engineers supply the support of technology.
- 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
- Parts supply on time.
- 24 hours service and technology support.
FOR SALE:
TIPPER TRUCK ;TANKER TRUCK ;MIXER TRUCK;TRACTOR TRUCK ;CARGO TRUCK.....ETC
ROLLOER ;LOADER;EXCAVATOR ;TRUCK CRANE ...ETC
LOWBED ;TANK ;BULK CEMENT ;CONTAINER ;FLATBED TRAILER ....ETC
SPARE PARTS ;TIRE ...ETC
FAQ:
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
