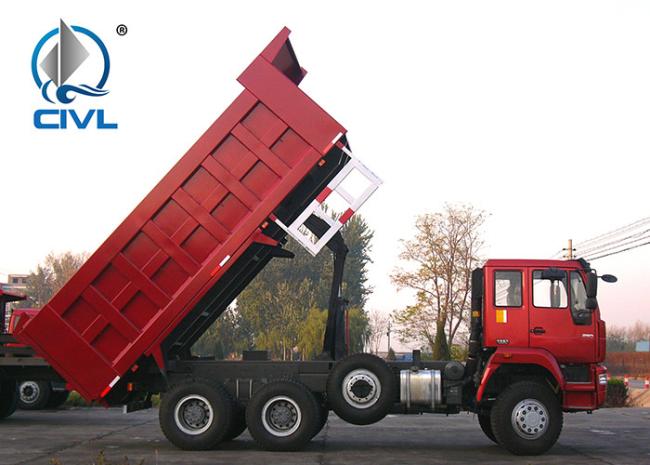

SINOTRUK SWZ 6X4 DUMP TRUCK 12.00R20 Radial tire,11 pcs Option: nylon tire
1SINOTRUK SWZ 6X4 DUMP TRUCK series trucks own the elegant appearance, strong operation syste
2.Sino Heavy Machinery Co,Ltd is the authorized company of SINOTRUK(CNHTC), and mainly deal with
heavy duty trucks /all spare parts and service We supply HOWO, , KING, GOLDEN PRINCE, HOHAN series 4X2, 6X4, and 8X4 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks, log trailers tractors, terminal tractors, etc. Our products arrange from 190 horse power to 410 horse power, and loading capacity cover from 5 tons to 50 tons.
Specification:
|
Item |
SINOTRUK SWZ 6X4 DUMP TRUCK |
|
Truck model |
CVZZ3317N3867B |
|
Max driving speed: |
50km/h
|
|
Engine model |
290/336/371HP, EURO II |
|
Carriage internal size: |
5100/5200/5400/5600/6000/6200/6500/6800*2300*800/1000/1200/1450/1500mm;volume:10-24m3 Thickness: bottom 8/10/12mm, sides: 4/6/8/10mm
|
|
Front Axles |
HF12, 12000KG |
|
Rear Axles |
HC16,2*16000kg |
|
Steering |
ZF8098, GERMANY |
|
Tires |
12.00R20 Radial tire,11 pcs Option: nylon tire |
|
Air conditioner |
With safety belts for driver and co-driver |
|
Transmission |
HW15710/ HW19710, 10F&2R |
|
Export Markets |
South America, Southeast Asia, Africa, Mid East, Eastern Asia |
|
Loading Capacity |
20-38 ton |
|
Driver's Cab |
No sleeper/one sleeper/ two sleepers, VOLVO TECHNOLOGY |
|
Hydraulic Lift of Carriage |
T model (ventral lift)/ front lift |
