China Cargo Van Light Duty Commercial Trucks Payload 1-12 Ton EURO III/IV/V

Advantage: Lower fuel economy standards

Purpose:  Are used for utilitarian purposes

SPECIFICATION: ZZ1047D3414D145

Engine :
Make: ISUSU
Engine model: JE493ZLQ4, ISUSU brand,made in china, Euro IV emission standard
4 cylinder in-line with turbo-charging & intercooling
Maximum output: 109hp(80Kw) at 3600 rpm according to DIN
Maximum torque: 260Nm at 2000 rpm    Bore: 93mm;   Stroke: 102mm;
Displacement: 2.771L;  Compression ratio: 18.2
Net weight : 250kg      Fuel consumption:210g/kW.h
Dimension: 742x634x718mm

Clutch:
Single- plate diaphragm spring clutch, diameter 275mm

Transmission:
Model WLY6T100, 6 forward and 1 reverse; Max torque: 360N.m;with single shaft and Synchronizer
Ratio: 6.01, 3.29,1.94, 1.306, 1.00,0.795; 5.455R
Max input torque: 360Nm    Net weight : 110kg

Front/Rear axle: 2/3.5ton

Performance:
Maximum driving speed(km/h):39
Maximum gradeablility (%):214
Minimum ground clearance(mm):13
Minimum turning circle(m):12.1
Fuel consumption(L/100km): 90

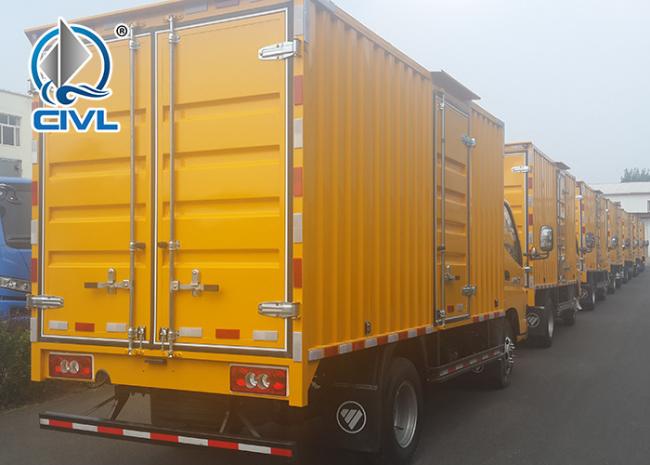

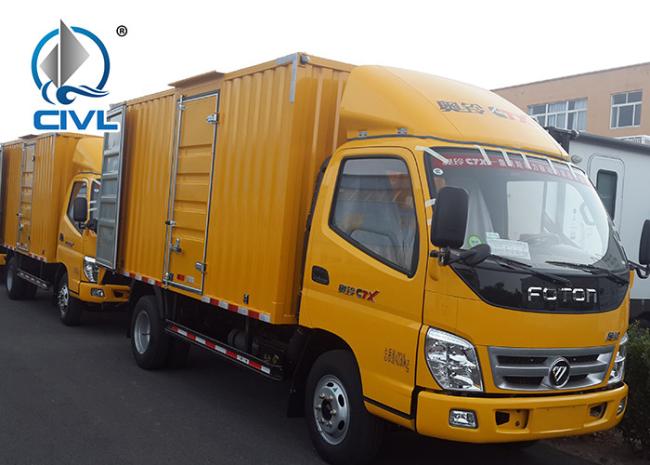

Clients come to choose on promotion ceremony and delivery vechiles ceremony
