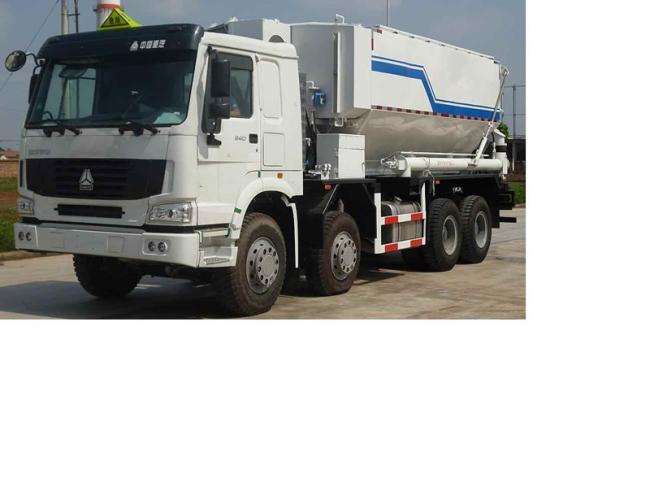

BCZH-15 on-site mixed heavy ANFO explosives truck has the transportation of raw materials, mixing, loading as a whole, it can make pure emulsion explosives, various proportions of heavy ANFO explosves, ANFO in the field, is suitable for the water hole and dry hole charge of open pit mine, the vehicle is a multi-purpose vehicle, has a good bunker configuration properties, it can mix 15t emulsion explosives or 15t heavy ANFO or 15t ANFO in the field, the advanced computer operation system can be precisely filled in the same hole with explosives of two different formulations , It has the security alarm system of over-temperature, over pressure, lacking of materials, safe and reliable.

The main performance parameters:

capacity of the dynamite : 15000kg

Charge Efficiency:

filled with pure emulsion explosives: 200 ~ 280kg/min
filled with heavy ANFO: 200 ~ 450kg/min
filled with ANFO: 450kg/min

Measurement error: 2%

utline size: (L × W × H) 11500 × 2560 × 3620

The traits of Mobile Processing Unit.

1. Intrinsically safe

2. The formulas of products are simple and made up of inexpensive raw materials of rich source.

3. Less pollution hazard.

4. Good accuracy.

5. High automation.

6. High discharging speed.

7. Explosive, produced by MPUs, are used immediately on site, with out explosive storage, which not only saves the expenditure for explosives storages construction and maintenance, but eliminates the safety problems in explosive’s storing.

8. Can improve blasting effect.

9. Cost less.

10. Easy to handle, not limited by time, transportation,storage and so on.
