High End 12.3 Cubic Meters Liquid Tanker Truck / Gasoline Tank Truck
Bowser;Effective volume of tank: 12.3 cubic meters
The bowser's main feature as the following

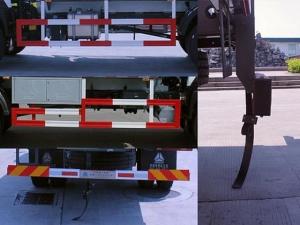

Effective volume of tank: 12.3 cubic meters, the shape of tank size (length x width x height) (mm) : 5300 * 2160 * 2160;Medium: gasoline, medium density: 700 kg/m3.Side and bottom side protective device made of Q235A, connections are bolted connection, after the section size of the lower protective device for (width x height) : 50 mm * 100 mm, and height from the ground is: 500 mm.ABS system models for 4460046300, the car should be installed with the motion of the satellite positioning function recorder.Tanks on both sides of supply pipe box.
| Vehicle name | Bowser | ||
| Vehicle type | Special vehicle | ||
| Vehicle model | JYJ5164GJYD | ||
| Engine model | YC6J190-46 | Engine power | 140 |
| YC6J220-46 | 162 | ||
| Engine displacement | 6494 | Engine manufacturers | Guangxi yuchai machinery co., LTD |
| 6494 | |||
| Overall dimensions(L/W/H) | 7950*2496*2960 | Type of fuel | Diesel |
| Total weight(Kg) | 16000 | Payload capacity | 3 |
| Curb weight(kg) | 7605 | Permitted capacity | 8200 |
| Spring nos | 11/9+8 | Front passenger(person) | 3 |
| Approach/Departure angle | 16/18 | Front/Rear overhang | 1250/2200 |
| Wheelbase(mm) | 4500 | Axle load | 6000/10000 |
| Axle nos | 2 | Max. drive speed (km/h) | 79 |
| Tyre nos | 6 | Tyre specification | 9.00R20,10.00-20,10.00R20 |
| Front wheel track | 19,002,020 | Rear wheel track | 1860 |
| Steering model | Steering wheel | ||
| Chassis standard | GB17691-2005EUROIV,GB3847-2005 | ||
| Identification code | LZZMBBGF****** LZZMBBHF****** | ||
