Heavy Duty Gasoline Tanker Trucks 16 CBM Special Purpose Vehicle With Tanker
Refueling truck ;Effective volume of tank: 16 cubic meters color optional
The refueling truck 's main parameters as below

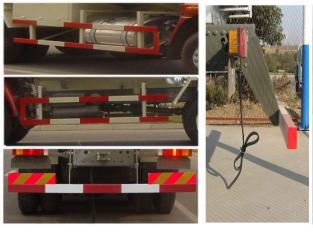

Effective volume of tank: 16 cubic meters, the shape of tank size (length x length short axis x axis) (mm) : 6600 * 2290 * 2290, medium: gasoline, medium density: 700 kg/m3.Side and bottom side protective device made of Q235A, connections are bolted connection, after the section size of the lower protective device for (width x height) : 100 mm * 100 mm, and height from the ground is: 500 mm.The product with the chassis optional mask before the new bridge.This product adoption of China national heavy duty truck group co., LTD. Production of WD615.97 C and WD615.97 E type engine.Installed with the chassis ABS, which has the function of satellite positioning running recorder.Only choose chassis radial tyre, before belting leather disc brake.
| Vehicle name | Refueling truck | ||
| Vehicle type | Special vehicle | ||
| Vehicle model | SHMC5230GJY | ||
| Overall dimensions(L/W/H) | 9350*2490*3070 | Type of fuel | Diesel |
| Total weight(Kg) | 22700 | Payload capacity | 3 |
| Curb weight(kg) | 11900 | Permitted capacity | 10670 |
| Spring nos | 12/12,10/12,4/-,10/- | Front passenger(person) | 2 |
| Approach/Departure angle | 12;16 | Front/Rear overhang | 1320/2330 |
| Wheelbase(mm) | 4350+1350 | Axle load | 6190/16510 |
| Axle nos | 3 | Max. drive speed (km/h) | 80 |
| Tyre nos | 10 | Tyre specification | 11.00-20 18PR,11.00R20 16PR,12.00-20 16PR,12.00R20 14PR |
| Front wheel track | 19,952,047 | Rear wheel track | 1820/1820,1850/1850 |
| Steering model | Steering wheel | ||
| Chassis standard | GB17691-2005EURO 3 ,GB3847-2005 | ||
| Identification code | LZZABLMF××××××××× LZZABLNF××××××××× | ||
tank car, watering cart, sprinkler,sprinkler truck ,water spraying
water tank truck, water tank lorry, tank water, tanker, tank truck, tank apparatus, water tanker
fuel tank car,oil tank truck,tank truck ,tanker,oil tank truck, oil tanker, refuel truck, refuelling truck,oil truck,fuel truck,petrol tanker, fuel vehicle, fuelling vehicle, fuel tanker truck,fuel-transportvehicles
