Low Density Powder Material Oil Liquid Tanker Truck 38.5 Cubic Meters ISO
The Low density powder material truck's main characteristic as the following

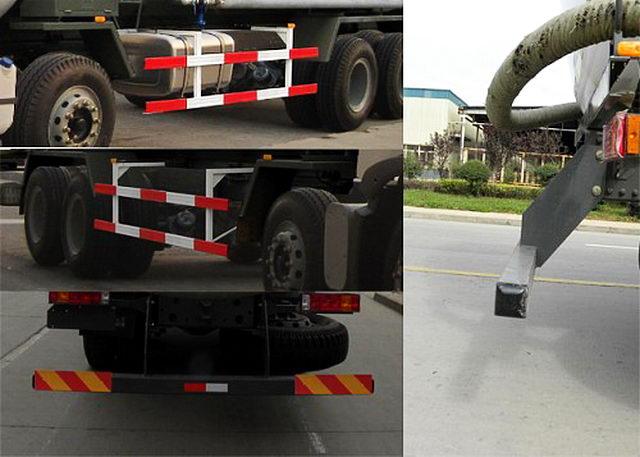

Effective volume of tank: 38.5 cubic meters, tanks overall length: 9600 mm, straight segment of length: 8760 mm, and tank diameter: 2490 mm, transport medium for: polyethylene powder, medium density is: 400 kg/m3. Side and bottom side protective device made of Q235A, connections are bolted connection, after the section size of the lower protective device for (width x height) : 100 mm * 100 mm, and height is 500 mm from the ground. ABS system models for 4460046300, options sun shade, ordinary cab. Installation running recorder with satellite positioning functions.
| Vehicle name | Low density powder material truck | ||
| Vehicle type | Special vehicle | ||
| Vehicle model | SHMC5317GFLD | ||
| Engine model | MC07.31-40 | Engine power | 228 |
| MC07.34-40 | 248 | ||
| Engine displacement | 6870 | Engine manufacturers | SINOTRUK |
| 6870 | |||
| Overall dimensions(L/W/H) | 11990*2496*3870 | Type of fuel | Diesel |
| Total weight(Kg) | 31000 | Front passenger(person) | 2 |
| Curb weight(kg) | 16160 | Permitted capacity | 14710 |
| Approach/Departure angle | 10;22 | Front/Rear overhang | 1430/2810 |
| 1430/2760 | |||
| Wheelbase(mm) | 1800+4600+1350 | Axle load | 6500/7000/17500 |
| 1800+4575+1400 | |||
| Axle nos | 4 | Max. drive speed (km/h) | 110 |
| fuel consumption | 40.7,41.2 | Spring nos | 3/3/4,3/3/5,3/3/10,3/3/-,11/11/10 |
| Tyre nos | 12 | Tyre specification |
10.00-20,10.00R20,11.00-20,11.00R20,12R22.5, 295/80R22.5 |
| Front wheel track | 2015/2015,2035/2035 | Rear wheel track | 1830/1830 |
| Steering model | Steering wheel | ||
| Chassis standard | GB17691-2005EURO IV ,GB3847-2005 | ||
| Chassis standard | LZZ1BXNF****** | ||
