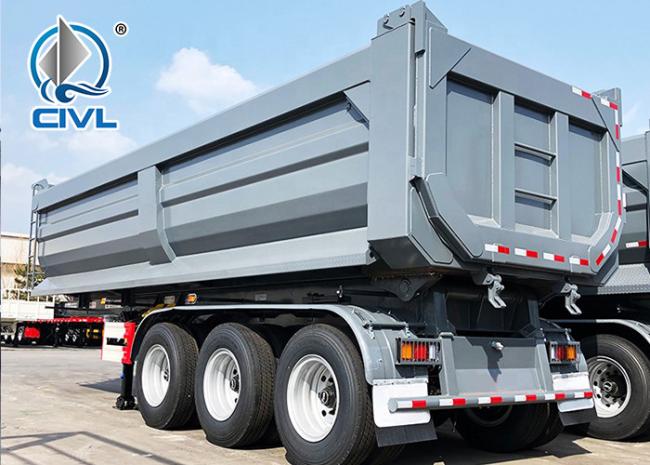

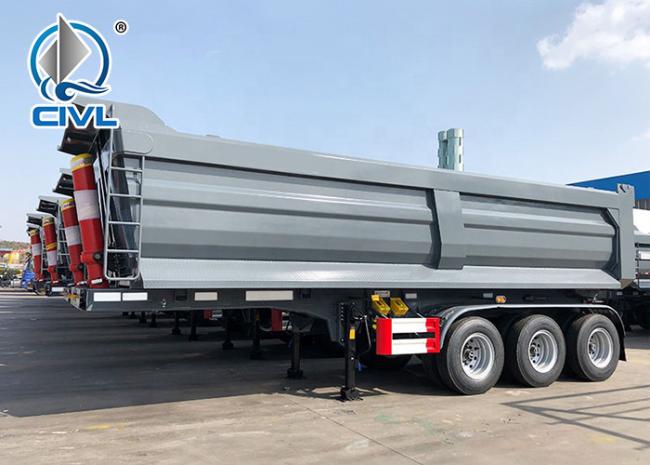

Rear Dump Trailer End Dumping Dumper Semi Truck Trailer 50t To 70 Ton 3 Axles With HYVA Hydraulic Cylinder
Description:
1, Made by high tensile strength steel, Q345B, Q610, 700
2, heave duty loading capacity. Dump volume: 25M3-55M3.
3, square shape or U-shape design, nice appearance.

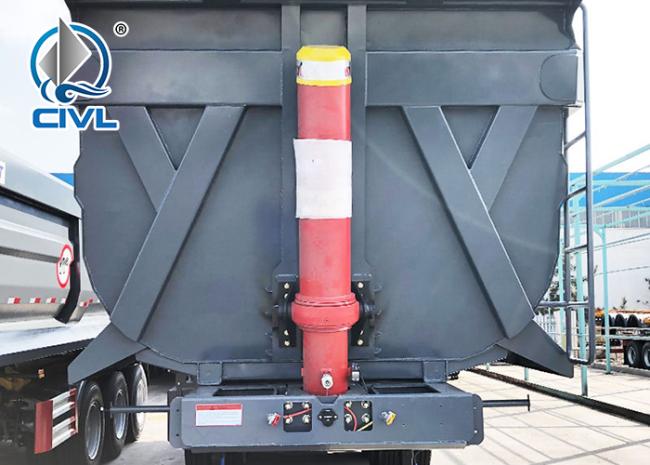

4, Hydraulic system: A set of HYVA Brand cylinder.
Specification:
| Type | 3-axle tipper semi trailer |
| Dump body dimension (LxWxH) | 14000x2500x3800mm |
| Bottom of dump body | 12mm |
| Side of box | 8mm |
| Hydraulic cylinder | HYVA |
| Frame | 450*16*16*6/6 |
| Axle | 16ton FUWA axle |
| Tyre | 11.00R20 |
| Landing leg | JOST D200T |
| Suspension system | Dual lines pneumatic brake |
| Kingpin | 3.5" |
| Electricity | 24V |
| Other | Tool box, tyre holder |
| Loading capacity | 80~100 tons |
Applications:
3 axles Dump trailers can take different Materials including (in many sizes, types, grades and colors):
- Rock
- Sand / Sandy Loam
- Gravel
- Masonry Aggregates
- Mulch
- Recycled Products
- Fill Dirt
- Fill Materials
- Specialty Aggregates
- Base Rock
- Topsoil
- Custom Soils Mixes
- Clay and Construction Materials
- Landscape Materials
- Asphalt
- Oil Field Materials
- Dump Sites for Dirt, Concrete, Asphalt, Rubble, Dredge and Contaminated Materiales
Competitive Advantage
1. Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
2. Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.
3. Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
