Blue 10 Tires Prime Mover Truck , High Cabin Howo Sinotruk 6x4 Tractor Truck 336HP Engine
High CabinSinotruk HOWO7 6x4 HOWO 336hp 371hp 420hp tractor truck / prime mover model in promotion 10tires with 1 spare
Description:
a. Factory direct sales
b. Professional Truck produced for 12 Years
c. humanization design truck
d. Complete Quality Controlling with process inspection System
e. Advanced Modern Manufacturing equipment
f. Flexible Overseas Marketing Strategy
g. Quickly and Humanized After-Service
h. Process inspect
j. With CCC,ISO,SGS,BV certification,and other customer's need
Specifications:
| Truck Model | ZZ4257N3241V(Left Hand Drive) | |||
| Dimension(Lx W xH)(mm) | 6800x2490x3668 | |||
| Approaching angle/Departure angle(°) | 16/70 | |||
| Overhang(front/rear) (mm) | 1500/700,725 | |||
| Wheel base (mm) | 3200+1400,3225+1350 | |||
| Max speed(km/h) | 102 | |||
| Curb weight(kg) | 11930 | |||
| Loading Weight(kg) | 40000 | |||
|
Engine ( technology, made in China) |
Model |
WD615,water-cooled,four strokes, 6 cylinders in line with water cooling, turbocharged and intercooling, directly injection |
||
| Fuel type | Diesel | |||
| Horsepower | 371hp | |||
| Emission | EURO2 | |||
| Fuel tanker capacity(L) | 400 | |||
| Transmission | Model | HW19710 | ||
|
Brake system |
Service brake | Dual circuit compressed air brake | ||
| Parking brake |
spring energy, compressed air operating on rear wheels |
|||
|
Steering system |
Model | ZF8118 | ||
| Front axle |
HF9 ( Steering with double T-cross section beam Loading capacity: 9000kg) |
|||
| Rear axle |
HC16 ( Pressed axle housing, central double reduction with differential locks between axles and wheels) |
|||
| Color | RED . | |||
| Tyre | 1200R20 11pics | |||
| King Pin | 90# | |||
| Electrical system | Battery | 2X12V/165Ah | ||
| Alternator | 28V-1500kw | |||
| Starter | 7.5Kw/24V | |||
| Cab | HOWO76cab, (onesleeping, with air-condition) | |||
Applications:
Sinotruk tractor trucks are widely applied in tractor, platform truck, tipper, mixer and other special purpose vehicles, etc.
Competitive Advantage:
1: Reliable:
Lateral stability: Patent and tailored frame design
Safety and reliability: New type brake drum
2: Low Fuel Consumption:
High efficiency Power-train: Optimized power transmission design
Low wind resistance: Streamlined cabin design
3, Euro type cabin:
Latest international style cabin
Crystal and upright mounted headlamp
4, Comfortable:
Flat floor cabin, enlarge the driver's space
Noise isolation technology

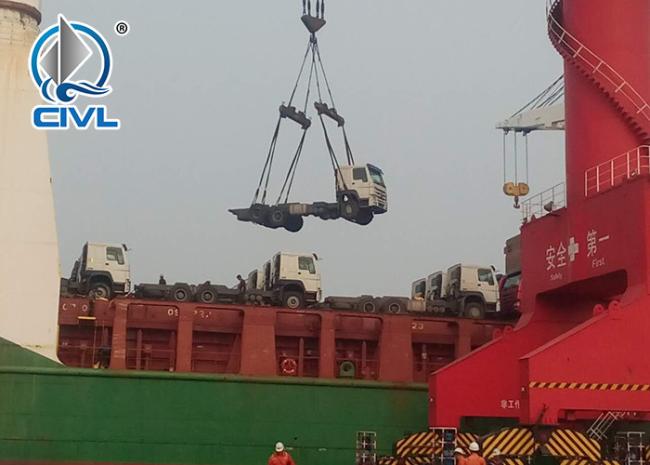

Package&Shipping:
Truck series:
1. Dump Truck; Cargo truck (1-120ton)
2. Tractor Truck; (1-120 tons)
3.Tanker Truck,( 54873020, 54798871, 54798867, 54633157, 54622108, 54621778, 54621524, water tanker and oil tanker)
4. Mixer Truck and Concrete Pump Truck
5. Mine Dump Truck( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road Drive Truck( 4x4. 6x6 and 8x8 Trucks)
7. Garbage Truck( Garbage Compactor Truck, Suction Truck)
8. Truck Mounted Crane(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
