6x4 Beiben 2638 chassis Beiben Truck Head 10 Tires Beiben heavy duty truck
Price:
US $40,000-44,500 / Set
MOQ:
1
Delivery Time:
Within 35 days
Brand:
CIVL
Product Description
6x4 Beiben 2638 chassis Beiben Truck Head 10 Tires Beiben heavy duty truck
Features:
Packaging Details
wax-coated on roro vessel for Beiben truck shipping
Delivery Time
Shipped in 30 days after payment
Specifications:
| 2638S /6×4/3450+1450/Long Cab/LHD | ||||||
| Dimension | 6935*2495*3340mm | |||||
| Approaching angle/Departure angle | 20/64° | |||||
| Overhang(front/rear) | 1410/625mm | |||||
| Wheel base | 3450+1450mm | |||||
| Max speed | 100km/h | |||||
| Curb weight | 9200kg | |||||
| Max towing weight | 39670kg | |||||
| Max loading on fifth wheel, Permitted(kg) | 15670kg | |||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WD6115.38, Euro II, water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection | ||||
| Displacement | 9.726L/Diesel | |||||
| Stroke | 126/130mm | |||||
| Max. power | 309/2200 (kw/rpm) | |||||
| Max.torque | 1750/1300-1400(Nm/rpm) | |||||
| Emission stantard | EuroⅢ | |||||
| Fuel tanker capacity | 400L | |||||
| Clutch | 430, Single dry frictional disc,Hydraulic boosting | |||||
| Gearbox | 12JS200T, mechanism,12 forward gears,2 reverse gear, manual operated, with synchronizer | |||||
| Gear ratio of gear box | 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs | ||||
| Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | TAS85,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
| Model | JOST 90 single direction | |||||
| Height of fifth wheel(mm) (unload) | 1410 | |||||
| Radius of front gap (mm) | 2300 | |||||
| Radius of rear slew (mm) | 2600 | |||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 12.00-R20 | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin | NG80B Long-Flat roof cabin with single sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C |
|||||

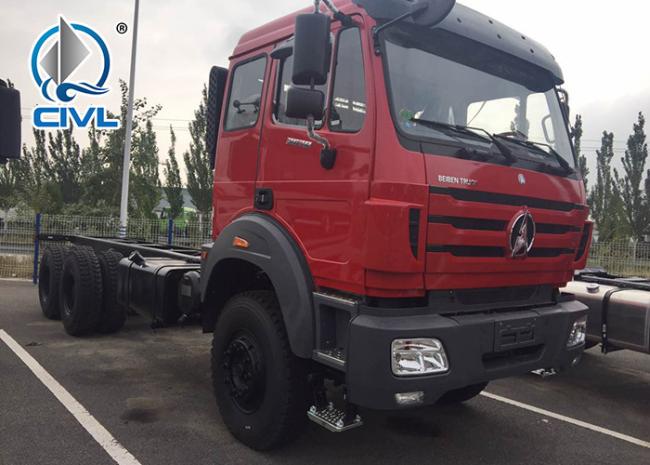

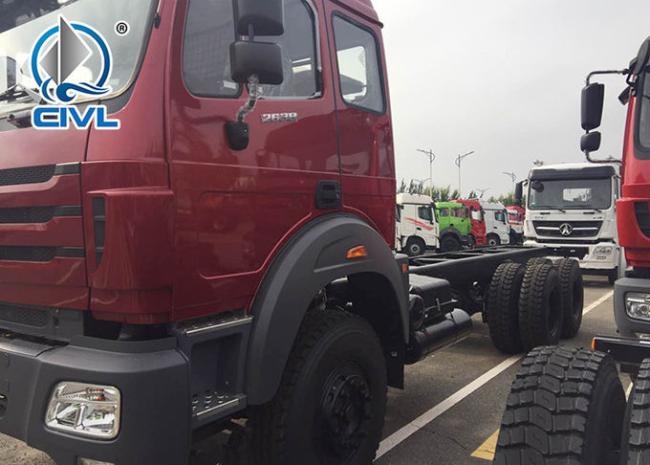

Photo details:
Quality Inspection:
Service:
Pre-service:
- Inquiry and Consulting support.
- Sample testing support.
- View our factory.
- Design various solutions as buyer's requirement.
After-sale service:
- Training how to use and maintain the truck.
- Our engineers supply the support of technology.
- 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
- Parts supply on time.
- 24 hours service and technology support.
