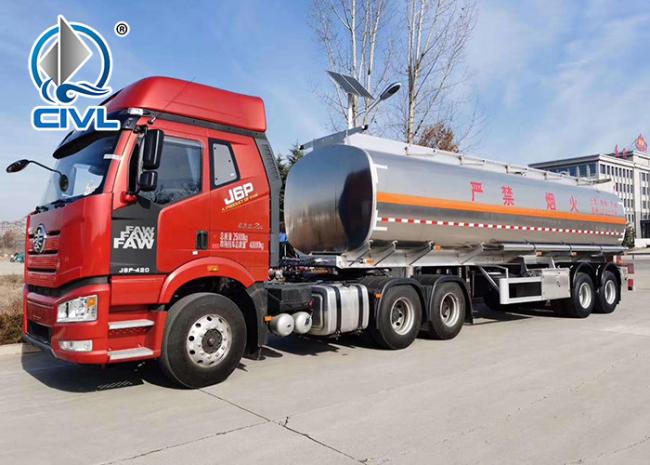

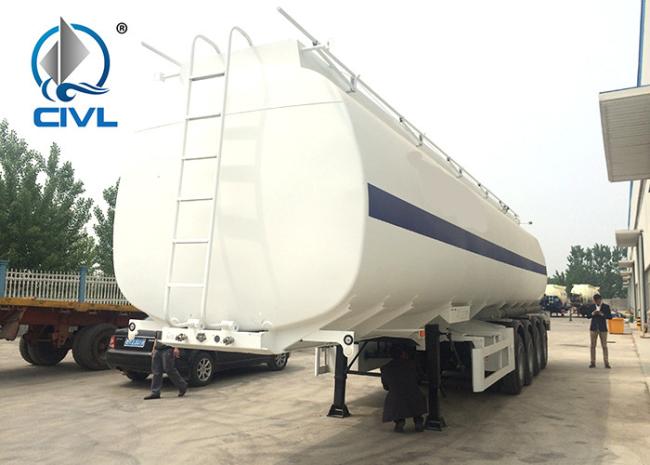

12 Tires SINOTRUK 3 Axles Fuel Semi Trailer Truck Tri - Axle Tank Capacity 40 - 60 CBM
| Product Name: | Semi Trailer Oil Tank Truck | Model: | 3 Axles 50000Liters |
|---|---|---|---|
| Fifth Wheel: | #50, #90 | Loading Capacity: | 50-80tons |
| Tank Capacity: | 45-60CBM | Axles: | 3X16 Tons |
| Material: | Carbon Steel Or Mn Steel | Compartment: | 6 |
| Braking System: | WABCO RE6 Relay Valve ;T30/30 Spring Brake Chamber;40L Air Tanks |
SINOTRUK 3 axles Fuel Semi Trailer Tanker truck Tri - Axle 50 - 80 Tons 40-60CBM
Description:
SINOTRUK 3 axles Fuel Semi Trailer Tanker truck Tri - Axle 50 - 80 Tons 40-60CBM
Lightweight: Aluminum Alloy semi-trailer vehicle weight ratio of steel semi-trailer reduced 3.5 tons, compared with Dora steel structure semi trailer transport 3.5 tons of cargo each operation;
Can save fuel: each weight loss of 1KG running 10 thousand kilometers can save fuel 0.7KG. layun the same weight of goods, Aluminum Alloy Trailer in fuel consumption is much lower;
B: Aluminum Alloy strong corrosion resistance than steel unmatched corrosion resistance, manufactured by Aluminum Alloy tank, do not need any internal coating protective layer can transport all kinds of liquids or gas. This is why like BP, SHELL these international oil giants force reason tank Aluminum Alloy petroleum transportation, because aluminum the alloy has good corrosion resistance, so as to ensure the oil cleaner.
* high recovery value: because Aluminum Alloy has high corrosion resistance in the tank in the mandatory retirement after the Aluminum Alloy tank and no great damage, recovery value is more than the original aluminum tank 85%. That is to say, a tank if using 5T aluminum scrap recycling tank, to at least 80 thousand yuan.
Specification:
| SINOTRUK 3 axles Fuel Semi Trailer Tanker truck Tri - Axle 50 - 80 Tons 40-60CBM | |
| Model | 3 Axles 50000Liters |
| Axle | FUWA brand, 13ton, 3 Sets |
| Main beam |
Beam height: 500mm Upper plate: 10mm Double Middle plate: 6 mm Down plate: 12mm |
| Tank Body Thickness | 4mm, 5mm, 6mm optional |
| Material | Carbon steel or Mn steel |
| Gross vehicle weight | 65000kgs |
| King pin | #90 |
| Support leg | JOST Standard 28T |
| Suspension | Normal suspension |
| Thickness leaf spring | 10/10/10 |
| Tire/Rim | 1200R20, 13pcs, 8.5, 12 pcs |
| Brake Chamber | Standard 6 pcs |
| Spare wheel carrier | 2 pcs |
| Tool box | 1 pcs |
| Electrical System | Chinese standard 24C lighting system |
| Side Maker Lamp | LED lamp |
| Painting | Polyurethane Paint |
| Overall dimension | 14100×2500×3780(mm) |
| Color | White, red, green, golden and so on. |
Applications:
It’s suitable for storage and carrying all kinds of Oils .
Competitive Advantage:
1) it has higher safety and running efficiency.
2) Optimized structure design, let it have lower self weight, but more stonger
3) excellent appearance of cabin, safety, reliable
4) low fuel consumption
5) the key parts adopt the world's top technology products
6) based on strong technical support and top level technology make the trucks with high
quality and more reliable
7) competitive price, cost-effective
8) quick and efficient spare parts supply bring you more convenient
9) fast delivery time, we can arrange production according to your needs exactly and Quickly
10) professional import and export dealing procedure, make customs clearance more high efficiency
