BEIBEN NG80 Heavy Cargo Trucks With EuroII Emission Stander And 6X4 10 Tires Weichai Engine 420hp
BEIBEN cargo truck price NG80 6X4 420hp ethiopia euro truck for sale
1.China famous BEIBEN brand
2.Euro 2 emission,WEICHAI engine
3.Loading capacity: 15Ton
4.High quality and competitive price
5.Best after-sales
| Traction type | 6x4 | |||
| Driving type | Left Hand Driving | |||
| Overall Dimension(LxWxH) | 9090*2500*3225mm | |||
| Bucket Dimension(LxWxH) | 7800*2300*800mm | |||
| Wheel base(mm) | 5950+1450 | |||
| Curb weight(kg) | 11540 | |||
| Front overhang/rear overhang (mm) | 1410/625 | |||
| Front track/rear track(mm) | 1940/1847,1847 | |||
| Approach angle/Departure angle | 26/22 | |||
|

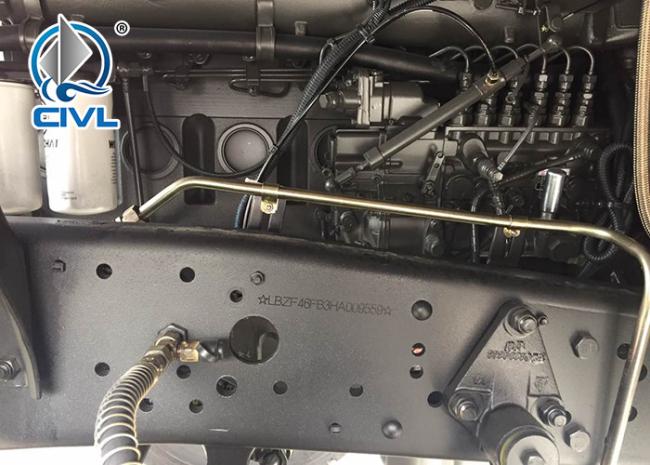

Engine technology, made in China |
WD12.420 |
Diesel, 4-stoke Direct injection,6-cylinder in line, radiator, turbo-charging, water-cooling, |
||
| Displacement(L) | 9.726 | |||
| Bore X stroke (mm) | 126mm/155mm | |||
| Max power(kw/rpm) | 420HP/308kW | |||
| Max torque(Nm/rpm) | 1500NM@1100~1600 | |||
| Min rate of consuming fuel(g/(kw.h)) | 196g/kW.h | |||
| Emission standard | EURO II | |||
| Max speed(km/h) | 85 | |||
| Fuel tanker(L) | 400L Al fuel tank | |||
| Clutch | Model | D430 diaphragm type | ||
| Gearbox | Brand | Fuller (Fast) | ||
| Model | 12JS200T | |||
| Shift mode |
12 forward speeds; 2 reverse speeds |
|||
| Steering system | Model | ZF8098 | ||
| Frame | 300mmx90mmx8+6+8mm | |||
| Front axle | 7.5T Using front non-driving steering axle | |||
| Middle and Rear axle |
13t double reduction driving axle
Ratio:5.263 |
|||
| Tyre | 12.00R20 Radial Tire | |||
| Number of tyre | 10+1 spare | |||
| Suspension | Leaf spring type | |||
| Front/rear: 13/13 | ||||
| Color | White | |||
| Electrical | Battery | 12V/135Ah | ||
| Generator | 28V-35A | |||
| Starter | 5.4Kw/24V | |||
| Cabin | Beiben NG80B long cabin with single sleeper and air-conditioner | |||

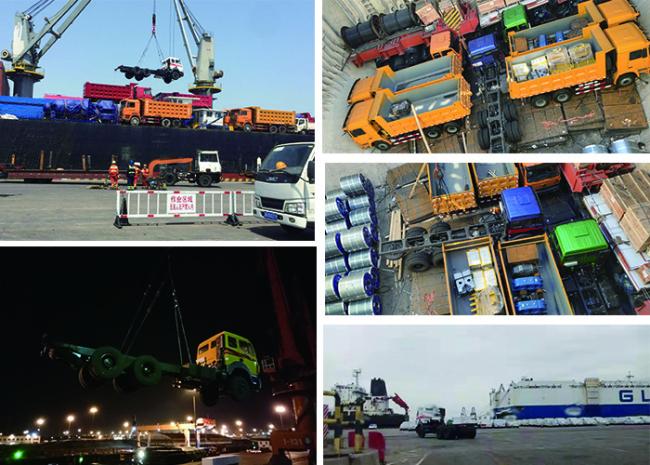

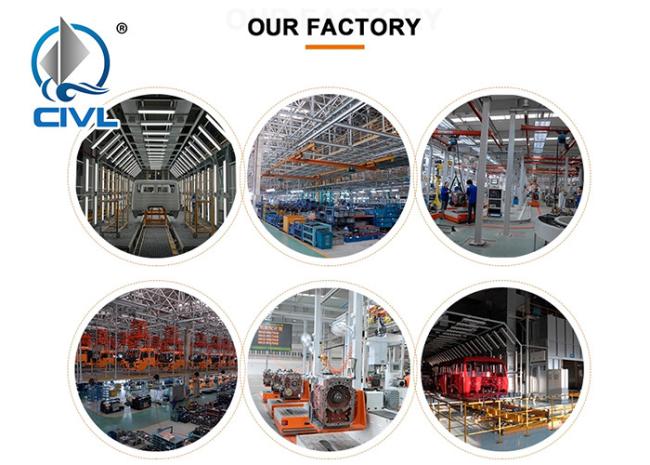

Factory and delivery:
