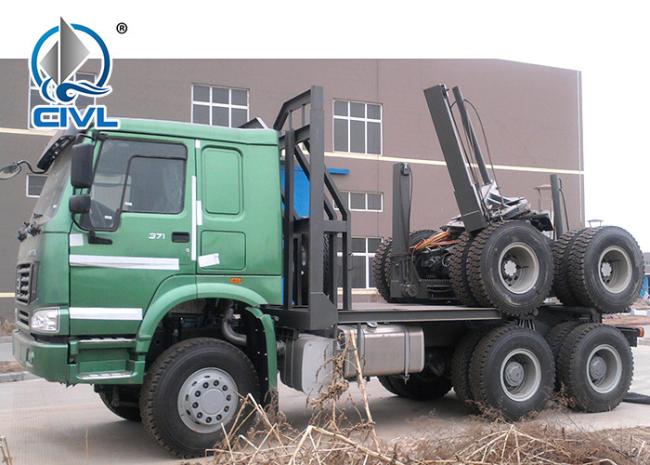

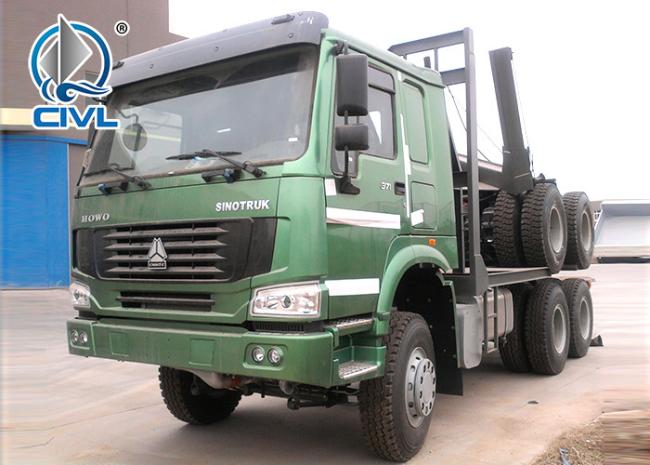

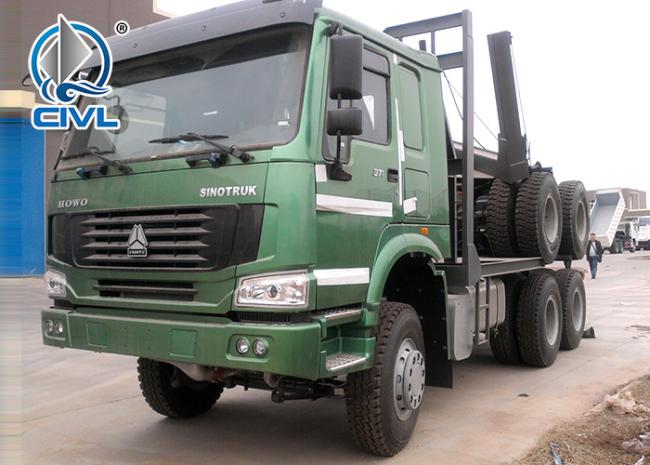

SINOTRUK HOWO 50 Ton 6x4 Logging Truck Log Carrier Truck Engine 290/336/371/380/420hp
Promotional 8X4 Euro II HOWO 18 meter logging truck wood transport trailer truck
1. Loading capacity from 2 tons to 60 MT
2. drive mode 4*2 6*4 8*4
3. LHD/ RHD
4. Truck condition: 100% original new condition truck chassis and upper part.
5. Certificate: ISO, CCC, BV, SGS, ASME, ADR etc
6. The logging truck can equipped with side posts, container lock, grabing hook , lifting crane and so on.
7. Truck can be designed as your requiremnt to be customized logging tray truck.
Specification:
|
Cabin
|
HOWO 76 Standard Cab
|
|||
|
With two bunks, 70° hydraulically tillable to the front as attached photo for ref.
|
||||
|
Vehicle Main Dimensions
|
(L x W x H)mm
|
8545x2500x3200
|
||
|
Wheel base (mm)
|
3825+1350
|
|||
|
Wheel track (front/rear) (mm)
|
2022/1830
|
|||
|
Approach/Departure angle(°)
|
19/23
|
|||
|
Weight in KGS
|
Tare Weight
|
12270 KG
|
||
|
Loading Capacity
|
12600
|
|||
|
Front axles loading capacity
|
1x9000
|
|||
|
Rear axles loading capacity
|
2x16000
|
|||
|
Max. driving speed(km/h)
|
75
|
|||
|
Engine
|
Brand
|
Sinotruk
|
||
|
Model
|
WD615.69
|
|||
|
Type
|
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
|
|||
|
Horse Power(HP)
|
336hp
|
|||
|
Emission standard
|
Euor II
|
|||
|
Gear box
|
HW19710, 10 Forwards gear & 1 reverse
|
|||
|
Clutch
|
Reinforced diaphragm clutch, diameter 430mm
|
|||
|
Steering Gear
|
ZF 8098,power steering, hydraulic steering with power assistance
|
|||
|
Fuel tank (L)
|
300
|
|||
|
Tire
|
12.00R20 All steel radial tire is available
|
|||
|
Brakes
|
Service brake: dual circuit compressed air brake
|
|||
|
air operating on rear wheels
|
||||
|
Auxiliary brake: engine exhaust valve brake
|
||||
|
Back crane
|
Max. Capacity (at Min. arm length )
|
3186KGS
|
||
|
Min. Capacity (at Max. arm length)
|
800 KGS
|
|||
|
Working Diameter
|
5700 mm
|
|||
|
Max. arm length
|
7000 mm
|
|||
|
Lifting diameter
|
800 mm
|
|||
|
