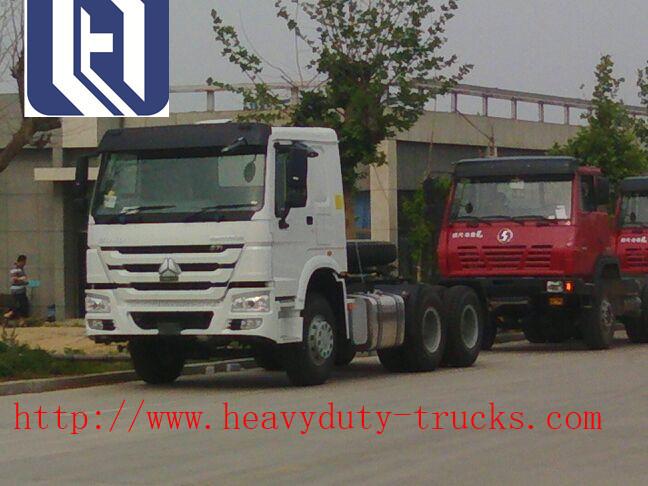

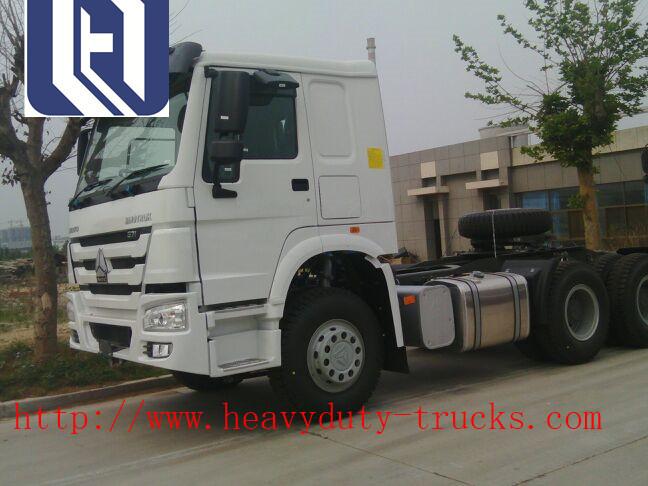

EuroII Sigle Sleeper Sino Truck 10 Wheel Tractor Head 371hp Prime Mover Right Hand Drive Tractor
Specifications:
| Truck Model | ZZ4257S3241V | |||
| Truck Brand | SINOTRUK-HOWO 76 | |||
| Dimension(Lx W xH)(unloaded) | 6800x2490x3668 | |||
| Approaching angle/Departure angle | 16/70 | |||
| Overhang(front/rear) (mm) | 1500/700,725 | |||
| Wheel base (mm) | 3200+1400,3225+1350 | |||
| Max speed(km/h) | 102 | |||
| Curb weight(kg) | 11930 | |||
| Loading Weight(kg) | 40000 | |||
|
Engine ( technology, made in China) |
Model |
Engine: D12.42,water-cooled, four strokes, 6 cylinders in line with water cooling, turbocharged and intercooling, directly injection |
||
| Fuel type | Diesel | |||
| Horse Power, max(kw/rpm) | 420HP | |||
| Emission | EURO2 | |||
| Fuel tanker capacity | 400 | |||
| Transmission | Model | HW19710, 1900N.M | ||
|
Brake system
|
Service brake | ABS brake system | ||
| Parking brake |
spring energy, compressed air operating on rear wheels
|
|||
|
Steering system
|
Model | ZF8098 | ||
| Front axle | HF7 | |||
| Rear axle | ST16:16T | |||
| Color | Color as customer’s requirement | |||
| Tyre | 12.00-20 or 12R22.5 or 295/80R22.5 11UNITS | |||
| Electrical system | Battery | 2X12V/165Ah | ||
| Alternator | 28V-1500kw | |||
| Starter | 7.5Kw/24V | |||
| Cab |

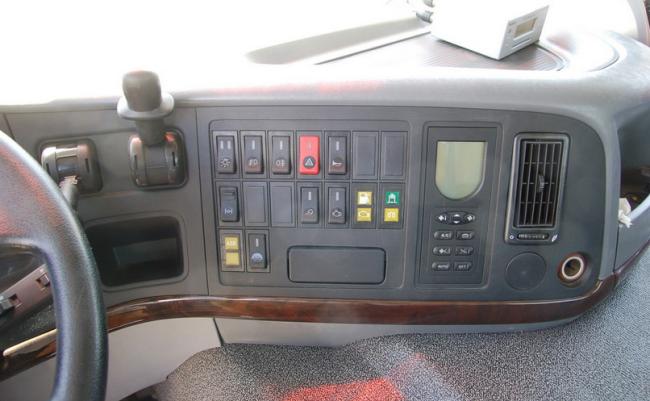

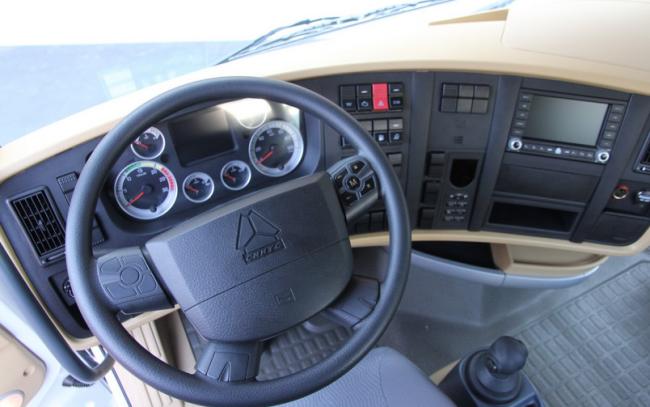

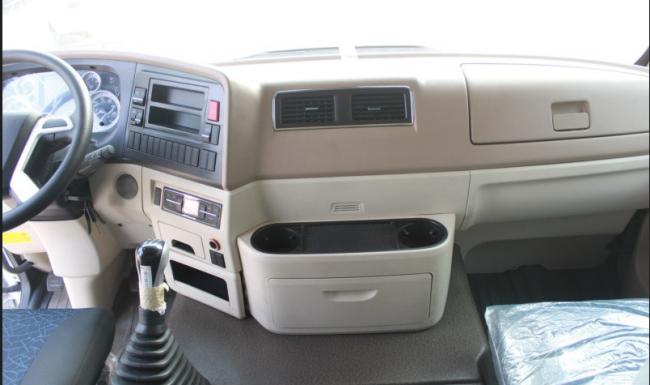

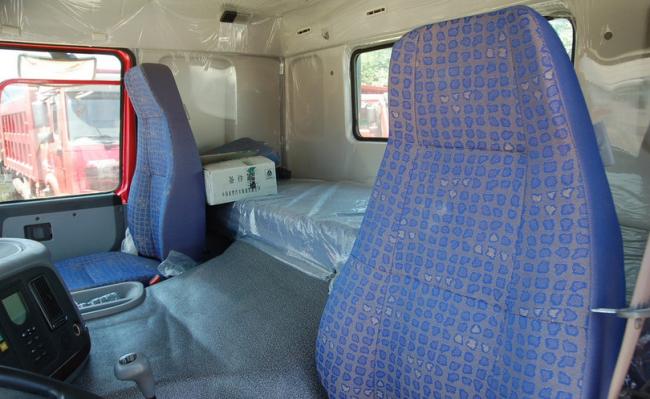

HOWO76 cab, (single sleeping with air-condition), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, Hydraulically damped adjustable driver’s seat rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
|||
Description:
1. The medium-long cab is equipped with a large fairing (air guiding device) with the length of 2 meters and the width of 1.6 meters. The side wind deflector is available to choose. It can effectively reduce wind drag and has good fuel saving effect.
2. The newly designed headlamp assembly is fine and exquisite. It is harmoniouswith the overall shape of the cab. Adopting the international popular crystal lamp shell, the headlight has high brightness, strong penetrating power, and long service life. In addition, xenon bulb can be chosen.
Applications:
Towing of vehicle with a traction device, designed for towing all kinds of semi-trailers
Competitive Advantage
1. Professinal Sales Team of trucks. Our target is not selling trucks, we help customers choose the best suitable trucks.
2. The rear lamp assembly is reasonably designed, compact in structure, and beautiful in appearance. Its support adopts multi-point connection which is more solid and stable.
Details Ptos :
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
