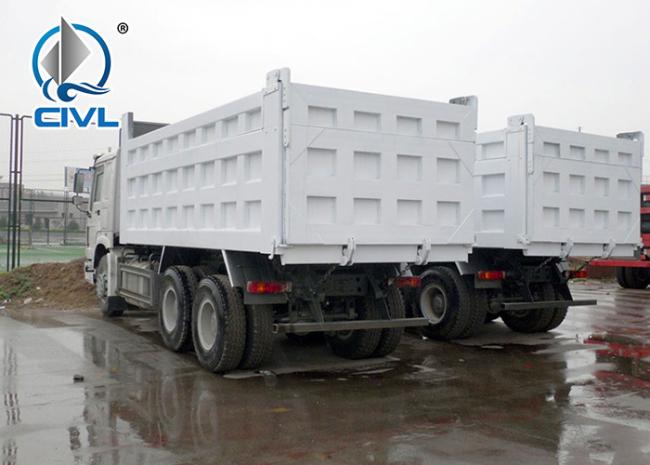

Sinotruk China New HOWO 371hp Tipper 25 Tons Dump Truck In Lower Fuel Consumption diesel fuel type color white
Description:
The engine drives the hydraulic pump through the transmission and power take-off device. The operating system controls the movement of the piston rod, stopping the compartment at any desired inclined position. The compartment can be tilted backwards or laterally, though the former is more common. There are also products supporting both. The compartment uses it own gravity and hydraulic control to reset.
The main technical parameter of the tipper is loading weight and the load volume is also indicated. Load according to the rated loading capacity. Overloading is strictly prohibited. Trail operation must be performed for new or overhauled vehicles, ensuring smooth compartment lifting process without large axial clearance. Choose proper lubricants by rule for different parts of the vehicle. Pay attention to the lubrication cycle. The oil for the lifting mechanism should be replaced on schedule.
Applications:
It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.
Specifications:
| General information | |||
| Driving Type: | 6X4 | Model No. | ZZ3257N3847A |
| Whole Dimension: | 8545×2496×3370mm | Wheel base: | 3825+1350mm |
| Loading weight: | 20~30 ton | Max speed: | 75km/h |
| Engine | |||
| Engine No: | WD615.47 | Fuel type: | Diesel |
| Max output rate: | 273kw | Horse power: | 371hp |
| Emission standard: | Euro II | Emission: | 9.726L |
| Gearbox | |||
| Gearbox No: | HW19710 | Transmission Type: | Manual |
| Forward: | 10 speed | Reverse: | 2 speed |
| Chassis and tire | |||
| Front axle: | HF9 | Front axle loading: | 9000kg |
| Rear axle: | HC16 | Rear axle loading: | 16000kg |
| Tires | 12.00-20/12.00R20 | Tire quantity: | 11, with spare tire |
| Dump box | |||
| Box dimension: | 5200~5800x2300x1200~1500mm | Hydraulic System: | HYVA front lift |
| Floor thickness | 8mm/10mm/12mm | Side thickness: | 4mm/6mm/8mm |
| Note: Dump box can be customized as customer’s request. | |||
|
Competitive Advantage
1. Humanization easy and convenient to drive,there are many key close to touch,and it save human labors and also can make the drive focus on the driving
2. Low oil consumption.Sinotruk adopt the engine that combin the MAN and technolgoy,it has the perfect oil performance.
3. Load more.with using our truck,it can load more goods in safe.
4. Sufficient stocked spare parts are available for you when you need to repair your trucks.
