371hp Engine 4x4 Full Road Cargo Truck Sinotruk Howo Heavy Duty
SINOTRUK HOWO heavy duty 371HP engine 4x4 full road cargo truck
Description:
- Excellent power matching system,to make sure rhe superexcellent economy :
- Adopt the most advanced engine and drive system maching with technique route:
- Low speed high torque engine of the wide rotational speed belts
- HOWO multi=tranmission is useful for enlarging the torque of the engine further
- The Strong axle HC16 is more adaptive to different kinf of road condition.

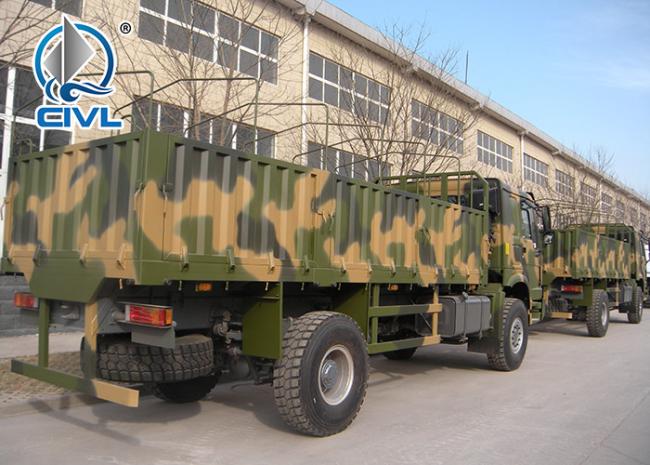

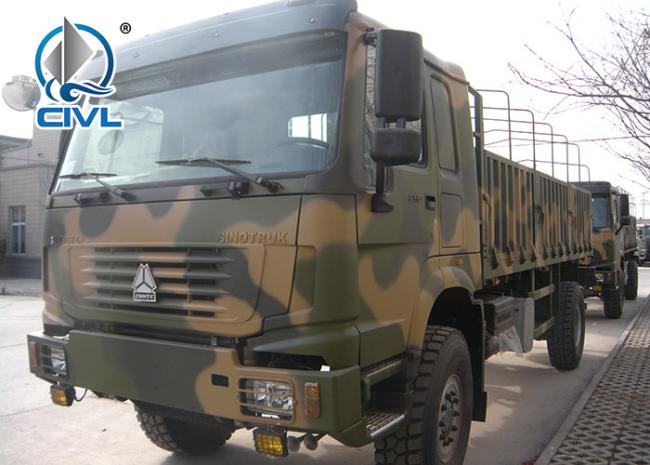

Photo:
Specification:
| Model | ZZ2167M4627A-290HP | |
| Drive Type | 4x4 LHD (RHD is optional) | |
| Cab | Type | HW7D, HOWO CABIN |
| Equipment |
With Air Condition, One sleeper HOWO TYPE INSTRUMENT DESK |
|
| Weight | Kerb mass(kg) | 7780 |
| GVW(kg) | 7780+16000 | |
| Dimensions | Max.Length *Width*Height(mm) | 8268×2496×3200 |
| Front/Rear overhang(chassis) | 1500/1400 | |
| Wheel base(mm) | 4600 | |
| Track width(mm) | 2045/1800 | |
| Body size | Length *Width*Height(mm) | 5500x2300x600 |
| Thickness of Steel | Floor 3mm, back&side 1.5mm | |
| Performance | Max. speed (km/h) | 80±10 |
| Max. gradeability(%) | 50 | |
| Approach/Departure angel(°) | 20/40 | |
| Engine | Brand | SINO BRAND |
| Model | WD615.87 | |
| Power (kw/hp) | 213kw/290hp | |
| Max torque (N.M)/rpm | 1160/1200--1600 | |
| Displacement (L) | 9.726 | |
| Emission Standards | Euro II | |
| Specific fuel consumption | 192g/kwh | |
| Transmission | Brand | SINOTR |
| Model | HW19710 | |
| Control type | Manual | |
| Gear Shift | 10-forward &2-reverse speeds | |
| Clutch | Type | Single plate,diaphragm spring |
| Diameter (mm) | Φ430 | |
| Action | Hydraulically operating with air assistance | |
| Brakes | Type | Drum |
| Service Brake | With dual-circuit compressed air brake | |
| Park Brake | Power spring brake acting on rear wheel | |
| Auxiliary Brake | WEVB | |
| Brand | WABCO SYSTERM | |
| Steering | Type | ZF8098(From Germany) |
| ZF TECHNOLOGY | ZF8098 hydraulic steering with power assistance | |
| Chassis | Type | Ladder structure with parallel straight |
| Dimensions (mm) | 300x80x8 | |
| Suspension | Front |
Reinforced front vertical semi-ellipse leaf spring, drum shock absorber, front stabilizing bar |
| Rear |
Reinforced rear integrated balanced suspension, single side tilt 4 riding screws, rear stabilizing bar |
|
| Axles | Brand | SINOTRUK |
| Front | HF10 TYPE: 10 ton axle | |
| Rear |
AC16 TYPE: 16 ton strengthened axle, double reduction driving axle with inter-wheel differential and differential lock |
|
| Ratio | 6.5 | |
| Tyre | Type | 12.00-20 bias tire |
| Number | 10+1 | |
| Fuel tank | Tank capacity(L) | 400 |
| Material | Aluminum alloy | |
| Electrics | Type | 24V |
| Starter | 7.5kw(24V) | |
| Generator | 2.0kw(28V 70A) | |
| Battery | 2x180Ah | |
Pre-service:
- Inquiry and Consulting support.
- Sample testing support.
- View our factory.
- Design various solutions as buyer's requirement.
After-sale service:
- Training how to use and maintain the truck.
- Our engineers supply the support of technology.
- 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
- Parts supply on time.
- 24 hours service and technology support.
FOR SALE:
TIPPER TRUCK ;TANKER TRUCK ;MIXER TRUCK;TRACTOR TRUCK ;CARGO TRUCK.....ETC
ROLLOER ;LOADER;EXCAVATOR ;TRUCK CRANE ...ETC
LOWBED ;TANK ;BULK CEMENT ;CONTAINER ;FLATBED TRAILER ....ETC
SPARE PARTS ;TIRE ...ETC
