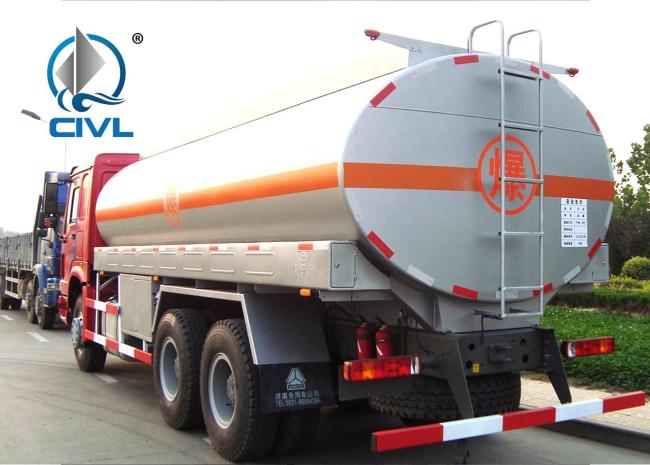

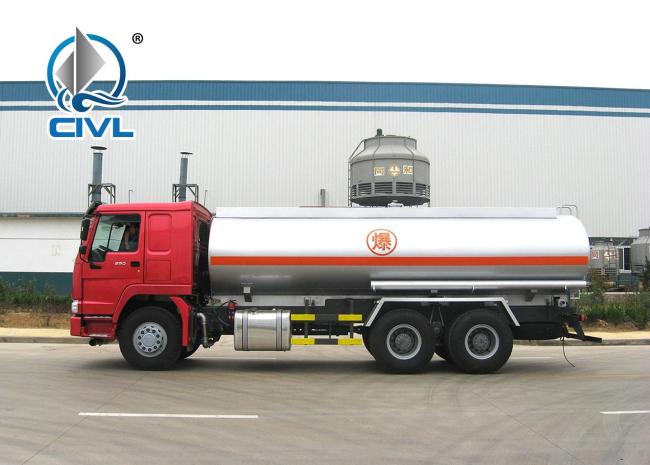

Large Liquid Tanker Truck , Sinotruk Howo7 Oil Tank Truck 20 - 25m3 With Pipe And Pump 6x4
6x4 Low Price Sinotruk HOWO fuel tank truck oil Truck oil tank truck
| ITEM | UNIT | PARAMETER | |
| Overall dimension | mm | 10980x2495x3300 | |
| Tank dimension | mm | 8200x2410x1440 | |
| Tank volume | m3 | 25 | |
| GVW | kg | Appro×33170 | |
| Curb weight | Appro×12170 | ||
| Payload | Appro×21000 | ||
| Wheel base | mm | 4600+1350 | |
| F/R track base | 2022/1830 | ||
| Approach/departure angle | ° | 12/14 | |
| Suspension | mm | 1500/2905 | |
| Max speed | km/h | 95 | |
| Drive system | 6x4 | Steel | Power, Sino |
| Front axle | HF7 | Rear axle | ST16 |
| Tire specification | 12.00-20 | Number of axles | 3 |
| Engine model | Manufacturer | China National Heavy Duty Truck Group Co ., Ltd | |
| Model | WD615.69 | ||
| Emission/kw | 9726ml/247Kw, 336hp | ||
| Gear box | 10F&2R | ||
| Emission standard | Eu 2 | ||
| Introduce |
1, Tank made make of 4mm or 5mm high-quality carbon steel sheet. 2, Tank is equipped with multi-channel anti-wave partitions. igh-pressure gas leak detection, make sure the tank has a high strength, the center of gravity is stable, safe and stable vehicle delivery and so on. 3, Fuel tank truck build by PTO, drive shaft, gear pump, tank, pipe network system. Pipe network system consists of oil pump, three-way four-ball valve, two-way ball valve, filter, pipe composition. |
||
1.Terms of paymemt
30% contract value as the deposit by T/T,70% contract value payoff before delivery
time after production finished
2. What’s your MOQ?
One unit trailer or truck.We suggest two trailers one time to save the freight.
3. Can you satisfy my special requirement?
Definitely! We can discuss the practicable plan and produce it as your request.
4.What’s your warranty?
All of our semi trailers are produced strict with ISO standard,you needn’t worry about it.Certainly,if your trailer
parts wear out,we can provide suitable parts for you.
