3 Axles 22MT Aluminum Fuel Tank Semi trailer Oil Tanker Trailer
Price:
Negotiable
MOQ:
1
Delivery Time:
Within 35 days
Brand:
CIVL
Product Description
Description:
Our fuel tanker trailer choose Q345B carbon high-tensile steel material, welded by automatic Submerged-Arc processes.According to clients' requirements, we can customize different volume and compartment.
Aluminum tanker trailer can transport more oil than carton steel tanker trailer.Customized fuel tank trailer can be produced.
Tanker trailer will be inspected before painting ensure every detail in good condition.
Besides the tanker trailer,we also have container trailer,sidewall trailer,low bed trailer,cement trailer etc. for choice.
We usually adopt shipping by bulk cargo,flat rack and Roro ship.
Specification:
| Model Name | 50000 liters 3 axles 22MT fuel tank semi oil tanker trailer |
| Function | oil and fuel |
| Overall Dimension | (L*W*H) 11900*2500*3900mm |
| Volume | 50m3 |
| Tare weight | 10500KG |
| Tank body | Q235/4mm steel |
| End plate | Q235/6mm steel sheet |
| Axle | 3 axle 13T Fuwa Brand |
| Suspension system | Mechanical Suspension |
| Steel Spring | 10/10/10 leaf spring suspension |
| Manhole cover | 500mm manhole cover 2 sets |
| Tire | 12R22.5 12pcs |
| Rims | 9.0, 12 pieces |
| Discharge valve | 4''disc valve ,3pcs |
| Discharge pipe | 4''seamless steel tube ,3pcs |
| Spare Wheel Bracket | 2'' bolt-in king pin |
| Landing gear | Fuwa brand two-speed,manual operating ,heavy duty landing gear 28t |
| Tool box | one piece |
| Compartment | Three |
| Braking system | RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| Electrical system | voltage:24V 2.Receptacle:7ways(7wire harness) |
| Tail lamp with turn signal,brake light&reflector,side lamp etc. | |
| One set 6-core standard Cable | |
| Accessories | One standard tool box.fire extinguisher 2 pcs |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Main beams | Opting for high tensile steel Q345B welded by automatic submerged-arc processes |
| Packing | Polish with wax before shipping |

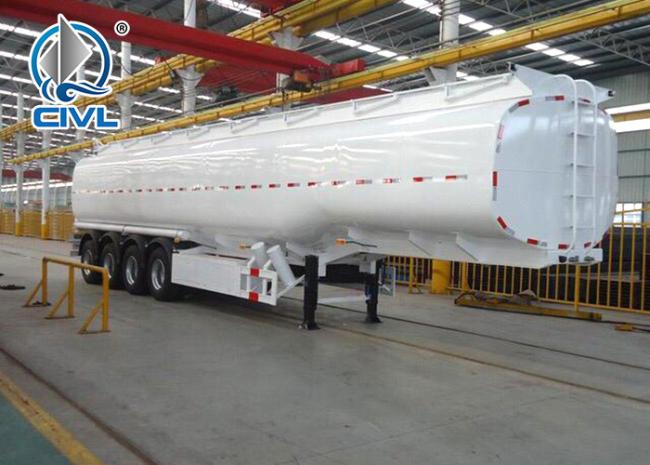

Photos:
