Sinotruk Howo Heavy Duty Dump Truck 6x4 8x4 / Lorry Sand Tipper Truck

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: Within 35 days
Brand: CIVL
Product Description

New Sinotruk Howo Dumper Truck 6x4 8x4 Tipper Lorry Sand Tipper Truck​



Description:



Engine:WD615.47,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and intercooling



Transmission:HW 19710,10 forwards and 2 reverse



Cab:HW76 cab, (one sleeper,with air-condition)

all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers



Application:



It is suitable for in harsh environments, unloading and transport ore and others.





Specifications:



Engine Frame Specification
Engine type WD615.47 Frame(mm) 8+8/300
Emission standard Euro II Dimensions(mm) 10500*2496*3450
Displacement 9.726L Wheel base (mm) 1800+3800+1350
Rated Power / rotating 273Kw/2200rpm Front Suspension 1500
Maximum Torque 1460Nm Rear Suspension 1670
Fuel type Diesel Approach/Departure angel 19/26
Transmission Axle
Type HW19710 Front axle HR9
Torque 1900Nm Disc Brake
Input power 331Kw Rear axle AC16
Weight 350kg Dump Brake
Oiling quantity 14.5 Speed ratio 4.77
Cab (HW76, mid-lengthened flat roof)
Equipments One sleeping beds
Automatic air conditioning
Mechanical clerestory
Four point air suspension
Air cushioned drivers seat
radio with MP3 player
Steering system import Steering system
Clutch φ430
Tire 12.00R20
Wheels number 12+1

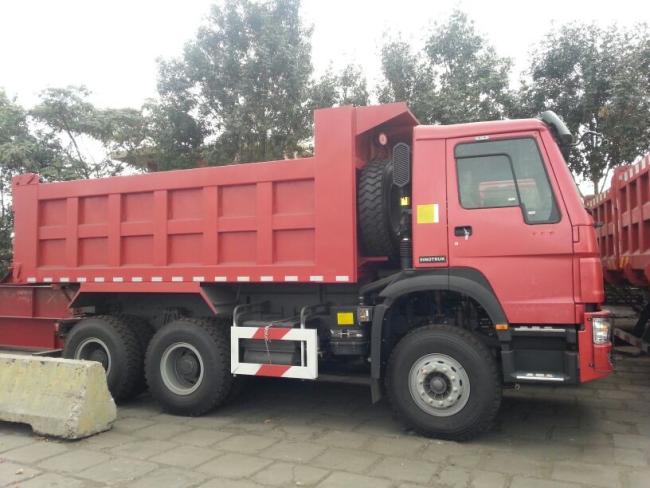

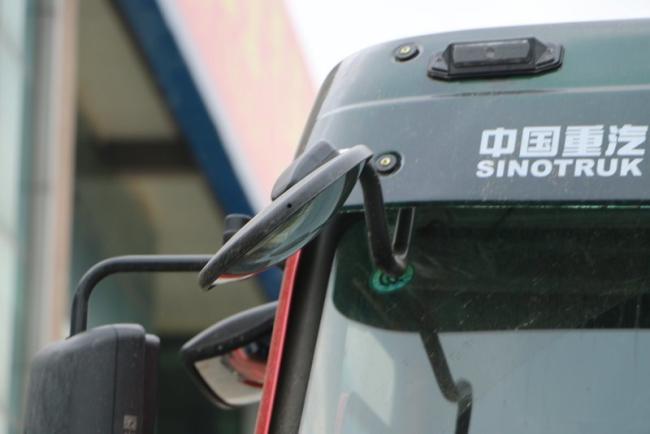

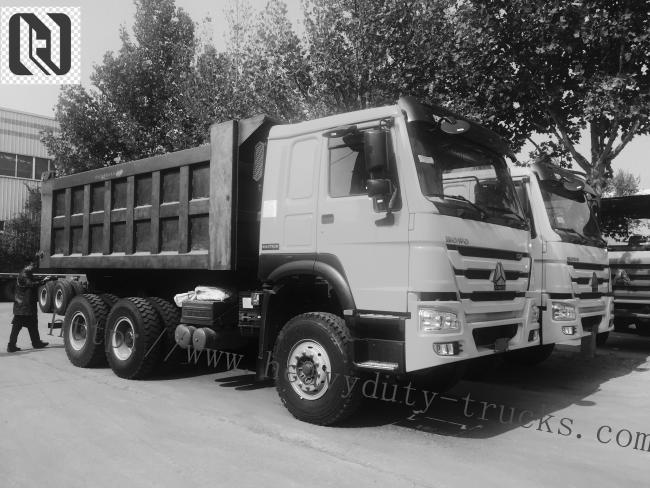

Detailed photo:
