Heavy Duty 3 Axles 40Ft Container Semi Trailer For Transport / Low Flatbed Truck

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: Within 35 days

Brand: CIVL

Product Description

3 Axles 40Ft Container Semi Trailer Widely Used New Condition Low Flatbed Container Semi-Trailer For Transport

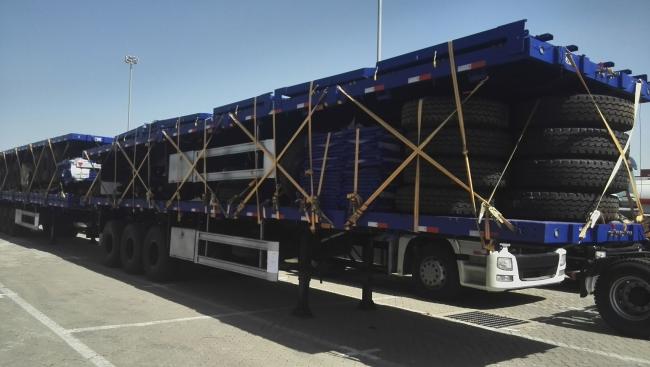

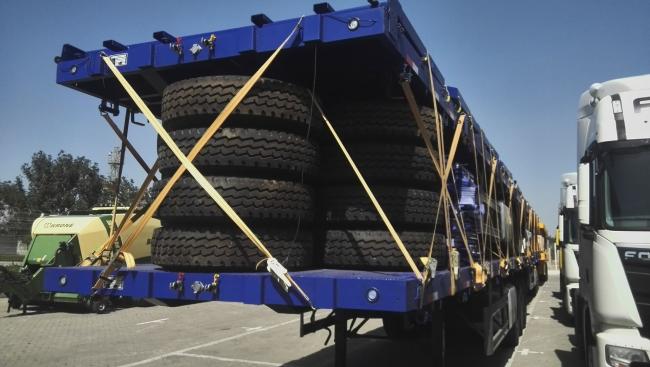

1.Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;

2. Cut the rear part which can load two sets in one 40ft container ;

3. Keep the trailer original but load two sets in one 45ft container.

Product Description

Specification of tri axle 40 feet flatbed trailer
MAIN SPECIFICATION
Type	40ft flatbed semi trailer
Function	2x 20ft and 1x40ft container or other stuff
Overall dimension	12500x2500x1600mm
Tare weight	7000kg
Loading weight	48000kg
Main beam	Material is Q345B, The height of the beam is 500 mm, upper plate is14mm, down plate is 16mm,middle plate is 8mm.
Boundary/Side beam	16U shaped steel or I shaped steel
Detachable front plate	One piece, height: 1.5m, all steel plate
King pin	JOST brand, 50mm or 90mm
Landing gear	28 ton, two-speed landing leg, FUWA brand
Axle	3x13ton, heavy duty axle
Axle brand	FUWA brand
Container locks	12 pieces
Suspension type	Leaf spring suspension
Leaf spring	10/10/10 90mm width and 13mm thickness
Tire	Triangle brand 12R22.5 12+1 spare piece
Rim	9.0-22.5 12+1 spare rim
platform thickness	3mm diamond plate
Brake Chamber	Six double big brake chamber
Spare tire carrier	2 pieces tire carrier
Emergency valve	WABCO Brand, RE 6 relay valve; T30/30+T30 Spring brake chamber; one piece of 45L air tanks
Tail lights	LED type
Voltage	24V
Receptacle	7ways (7 wire harness)
Fender	2 pieces, light steel, left+right
Tool box	1 piece, 1m x 0.5m x 0.5m,with some small gadgets
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
