Q345 Material Heavy Cargo Trucks For Transportation , Preparation And Charging Of Blasting Materials
| № | Name of specification | Technical specification |
| 1 | Chassis Model |
Sinotruck ZZ1317M4611W (Left Hand Driving Type) |
| 2 | Application | Site mixed granular ammonium nitrate fuel oil mixture (ANFO) explosive, transport, blending and filling to blast hole open-pit |
| 3 | Production Year | New |
| 4 | Charge Efficiency (Kg/min) |
Porous granular ANFO: ≥400; Powdery ANFO: ≥200 Charging speed: regulated and controllable |
| 5 | Charging type: | ANFO explosives |
| 6 | Blast hole dimension: | Ф100-250mm Length: 6-12 m |
| 7 |
Charge transfer mode, range feeding swing arm with delivery hose |
Screw conveyor, length of horizontally swinging feeding arm- not less than 4 m |
| 8 | Tank capacity and mixing: | Explosive material:15 ton or 18m3 (approx.) Oil:1m3(approx.) Material dosage (mixing ratio): regulated and controllable |
| 9 | Cabin |
HW76 cab (equivalent to), with two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. |
| 10 | Engine |
Diesel 4-stroke direct injection diesel engine /Engine model: WD615.87, Euro 2, 336 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling (equivalent to) Displacement: 9.726 L Heater of engine before starting |
| 11 | Transmission |
HW19710, 10F & 2R. Transfer disk: 1-Ф430мм |
| 12 | Steering |
ZF power steering, model ZF8098, hydraulic steering with power assistance (equivalent to) |
| 13 | Front Axle | HF9(equivalent to), 1x9000 KGS, Steering with double T-cross section beam |
| 14 | Rear Axle |
HC16(equivalent to), 2x16000 KGS, Ratio:4.42HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio:4.42 |
| 15 | Propeller Shaft |
2 чагтан голтой, араа хэлбэртэй холбогч бүхий кардан гол Double universal joint propeller shaft with gear-shaped coupling flange |

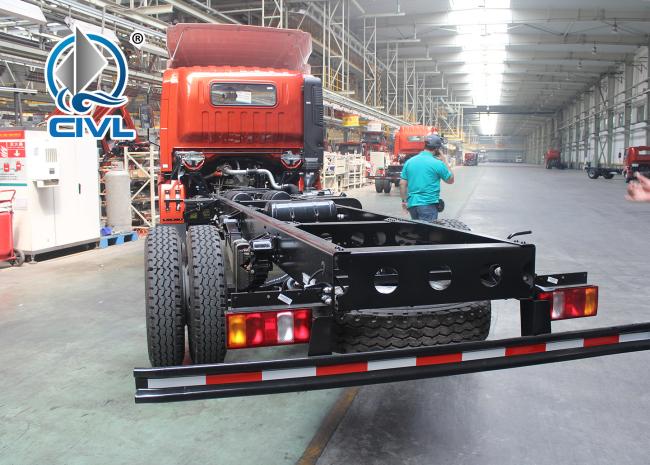

| 16 | Chassis |
Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| 17 | Brake |
Service brake: dual circuit compressed air brake ABS Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| 18 | Electrics |
Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| 19 | Tyres | Mode 8х4; 12R20 PR22, with tube + one spare |
| 20 | Fuel Tank | 400L < |
| 21 |
Overall Dimension |
9500*2550*3200 mm (approximately) |
| 22 | Safety and firefighting |
According to the standard regulation of safety and firefighting of explosive carrier |
| 23 | max.speed | 60-65 km per hour |
