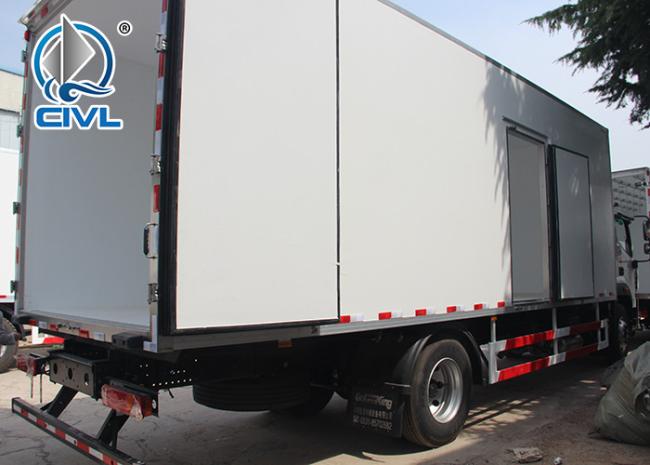

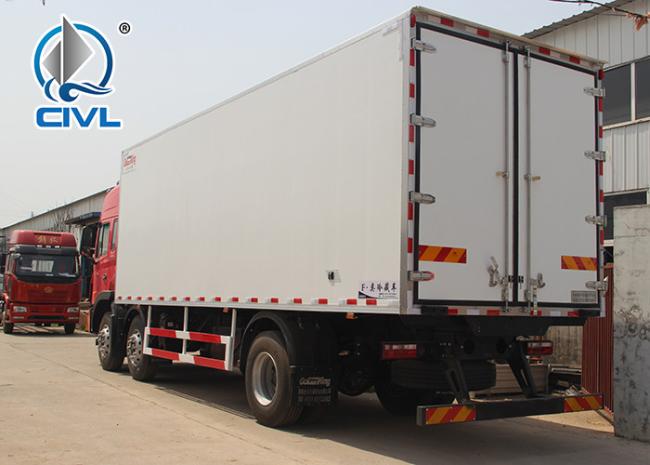

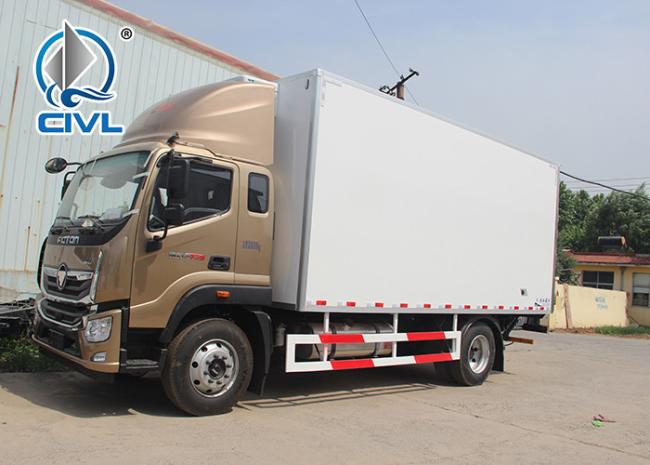

Sinotruk 3 - 7 Ton Carrier Refrigerated Truck / Cooler Van For Fresh Vegetable And Milk
3-7tons Carrier Refrigerator Truck/Cooler Van for Fresh Vegetable and Milk
| Main specification | |||||||
| Product model and name | SZD5070XLCB4 refrigerator truck | ||||||
| Gross weight(Kg) | 7495 | Drive type | 4X2,LHD,RHD | ||||
| Curb weight(Kg) | 4300 | Overall dimension(mm) | 6995X2250X3200 | ||||
| Approach/departure angle(°) | 23/15 | Cargo box dimension(mm) | 5150X2080X2000 | ||||
| Axle No. | 2 | Cab seats | 3 | ||||
| Axle load(Kg) | 3000/4495 | Front/rear hang(mm) | 1120/2075 | ||||
| Max speed(Km/h) | 95 | Wheelbase(mm) | 3800 | ||||
| Chassis specification | |||||||
| Chassis model | BJ1079 | Manufacturer | Foton Motor Co., Ltd | ||||
| Brand name | Foton | Dimension(mm) | 6800×2135×2330 | ||||
| Tire specification | 7.50-16 | Tire No. | 6+1(One spare tire) | ||||
| Steel spring number | 9/11+7 | Front track base(mm) | 1685 | ||||
| Fuel type | Diesel | Rear track base(mm) | 1630 | ||||
| Emission standard | Euro III | Transmission | 5 forward gear | ||||
| Cab | One and half row,3 person allowed with power steering and A/C | ||||||
| Engine model | Engine manufacturer | Displacement(ml) | Power(Kw) | ||||
| YZ4102ZLQ | Yangzhou Diesel Engine Co.,Ltd | 2800 | 90(122HP) | ||||
| Tank body0 | |||||||
| Tank capacity(m³) | 13-15 | box material | Fiber Reinforced Plastics | ||||
| Box thickness | 8mm | accessories | Stainless steel | ||||
| temperature | -18~30degree | Refrigerating unit | Famous brand | ||||
| Main feature | |||||||
|

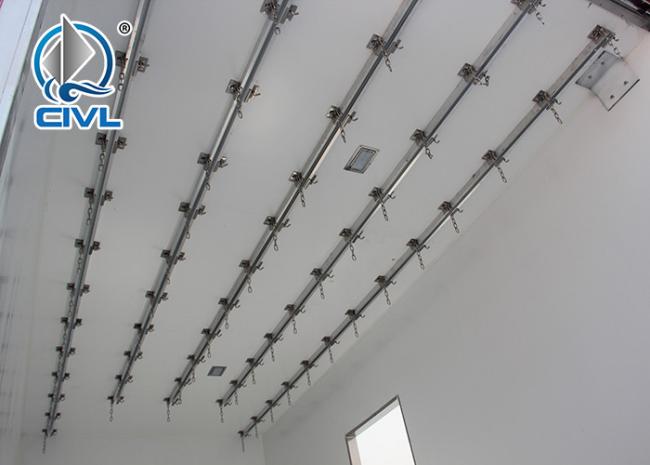

1, Refrigerated truck is mainly used to transport fresh meat, vegetables and seafood etc. Special ones can also transport dangerous chemicals. Our truck has lots of advantages, flexible, easy to operate , efficient, large Carryings, safe and reliable. 2,We product many kinds of refrigerated truck, the cargo body uses assembled technology with fully plastic and total enclosed composite material plates. 3, the inner and exterior thin-gauge skin of the cargo is glass epoxy, the sandwich panel is made of polyurethane foam insulation materials. The cargo body is adhered by glass epoxy and polyurethane foam materials with high-strength glue to make the cargo enclosed. 4, About the refrigerator unit, we choose domestic and thermo King, Carrier, Mitsubishi and other international famous brands. 5, Choose to fix meat hooker, leading rails, ventilation slots. |
|||||||
Application:
The refrigerator/insulated truck can be widely applied to various types of refrigerated/insulation transport , such as supermarkets, cold storage, food plants, pharmaceutical companies and so on. we can offer one-stop solution for customers, such as free designing,manufacturing,transporting,after-sale servicing and free technical supporting.
Typical features:
1. Light weight and high strength
2. Fire retardant treatment
3. Shock resistance and scratch proof
4. Anti-corrosion and good chemical substances resistance
5. Easy clean and simple installation
6. Insect prevention and antibiosis
7. Weather proof and hail resistance
8. Excellent thermal character
Competitive Advantage:
1. The price is competitive; we are the direct channel to supply refrigerator truck.
2. Fast production period, and quick arrangement of delivery.
3. Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.
4. Professional team for spare parts and aftersales services.
5. Technique support and training.
6. Customization service, as per your request, we will customize our production for you.
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
