Yellow Telescopic Boom Crane / XCMG electric Scissor Aerial Work Platform 10m GTJZ10
XCMG electric Scissor Work Platform Aerial Workl Platform
XCMG Official electric Scissor Work Platform 10m Aerial Workl Platform GTJZ10
Aerial work platform which is the newly developed series by XCMG can provide customers with a variety of personalization options. The compact structure can be applied
flexibly in a narrow space; with the new electric drive system, the driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole
protection system, safe and reliable; more extensible platform workspace. Shear can be used in the truck series construction and maintenance of commercial buildings, warehouses,
airports and other areas.
Specification for Work Platform 10m Aerial Workl Platform GTJZ10
| Item | Unit | Parameters |
| a Overall Length | mm | 2500 |
| b Overall Width | mm | 1186 |
| c Overall Height (Guardrail folding) | mm | 1867 |
| d Wheel Base | mm | 1925 |
| Maximum Working Height | m | 11.75 |
| Maximum Platform Height | m | 9.75 |
| Maximum Load Capacity | kg | 320 |
| Extension Platform Load | kg | 115 |
| Platform Size | mm | 2277×1146×1239 |
| Platform Extension Length | mm | 900 |
| Lifting Speed of Working Platform | s | 40-55 |
| Falling Speed of Working Platform | s | 40-55 |
| Total Weight | kg | 2960 |
| Travel Speed (High Speed) | km/h | 3.2 |
| Travel Speed (low Speed) | km/h | 0.8 |
| Max. Travel Platform Height | m | 9.75 |
| Minimum Turning Radius | m | 0/2.3 |
| Minimum Ground Clearance ( Pot Hole Protector Rises/Falls ) | mm | 122/20 |
| Maximum Grade Ability | % | 25 |
| Tire Specification | _ |
Traceless solid 38.1cm×12.7cm |
| Battery | V/(Ah) | 4×6(240) |
| Charger | A | 30 |
| Warning Angle of Inclination | ° | 2(Both sides) |
| ° | 4(Front or rear) |

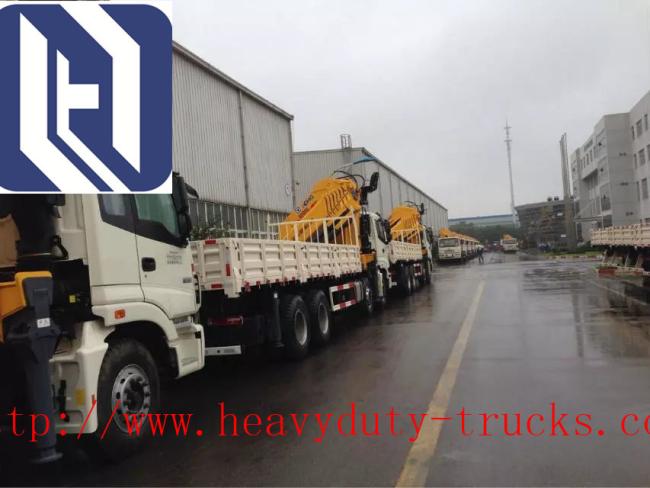

Picture for you reference
