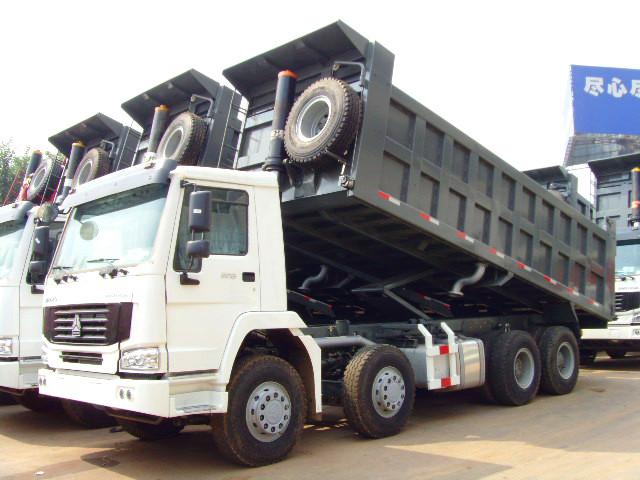

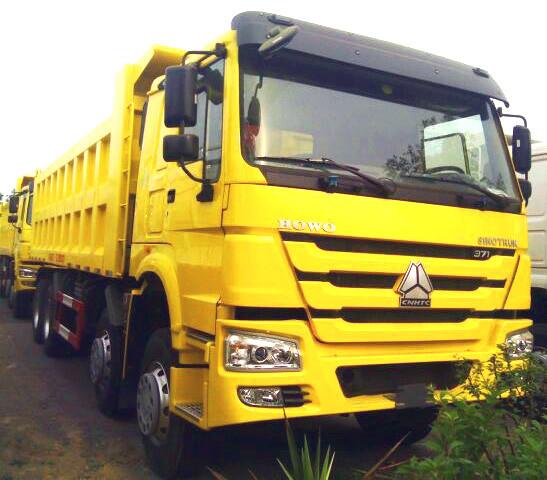

Left Hand Driving 8X4 Tipper Truck SINOTRUCK HOWO ZZ3317N4267A 50 - 60T Dump Truck
China Supplier HOWO 8X4 dump truck / 31t dump truck dimensions
| Truck Model : | ZZ3317N4267A |
| Truck Brand : | SINOTRUK – HOWO |
| Driving Style : | Left Hand Driving |
| Dimension (L*W*H)(unloaded)(mm) : | 10825×2496×3190 |
| Cargo body size (L*W*H, mm) : | 7800×2300×1050 |
| Cargo thickness (mm): | Bottom: 8 |
| Side: 6 | |
| Lift type of Carriage : | Front lifting |
| Approaching angle / Departure angle (°) : | 19/22 |
| Overhang(front / rear)(mm) : | 1500/1975 |
| Wheel base (mm): | 1800+4200+1350 |
| Max speed (km/h) : | 75 |
| Curb weight (kg) : | 15480 |
| Loading Weight (kg) : | 31000 |
| Fuel tanker capacity (L) : | 300 |
| Fuel consumption (L/km) : | 28L/100 |
| Clutch : | Single-plate dry clutch Φ 430mm |
| Fuel type : | Diesel |
| Horse Power, max (kw/rpm) : | 371HP |
| Emission : | EURO II |
| Transmission : | HW15710 , 10 forwards and 2 reverse |
| Brake system : | Dual circuit compressed air brake |
| Parking brake : |
spring energy, compressed air operating on rear |
| Auxiliary brake : | Engine exhaust brake |
| Steering system : | ZF8118 hydraulic steering with power assistance |
| Front axle : | HF9 , Steering with double T-cross section beam |
| Rear axle : |
HC16,Pressed axle housing,central double reduction |
| Color : | Optional( White , Red , yellow or as your needs ) |
| Tyre : | 12.00R20 |
| Cab : |
HOWO76 cab,single sleeper with air conditioner |
