HOWO 6x4 18CBM 18 Ton 6x4 Heavy Duty Dump Truck for Mining / Middle Lifting Tipper Truck
HOWO 6x4 18CBM 18Ton 6x4 Mining Dump Truck Middle Lifting Tipper Truck
Description:
Production Name: Stone Transport Dump Truck
1. Sinotruk dump truck adopt many key technologies both from home and abroad, and it can achieve the best design and be in good conditions.
2. Low oil consumption. Sinotruk adopt the engine that combine the MAN and technolgoy, it has the perfect oil performance.
3. Sufficient stocked spare parts are available for you when you need to repair your dump truck
4. with the same conditions, our dump truck can be used for a longer time as we used many world famous brand spare parts and assembly.
Specifications:
| Truck Model | ZZ3257N3647A (LHD) | ||||
| Truck Brand | SINOTRUK –HOWO | ||||
| Dimension(Lx W xH)(unloaded) | 8145x2496x3170 | ||||
| Cargo body size (L*W*H, mm) | 5400x2300x1200 | ||||
| Cargo body thickness(mm) | bottom:8mm, side:6mm, | ||||
| Lift type of Carriage | Ventral lifting | ||||
| Approaching angle/Departure angle(°) | 19/26 | ||||
| Overhang(front/rear) (mm) | 1500/1793 | ||||
| Wheel base (mm) | 3625+1350 | ||||
| Max speed(km/h) | 75 | ||||
| Curb weight(kg) | 12010 | ||||
| Loading Weight(kg) | 25000 | ||||
| Fuel tanker capacity | 300L with locking fuel cap | ||||
| Fuel consumption(L/100km) | 32 | ||||
| Clutch | Single-plate dry clutch Φ420mm | ||||
|
Engine Model ( technology, made in China) |
Model | WD615.69,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and intercooling | |||
| Horse Power, max(kw/rpm) | 336HP,247/2200 | ||||
| Emission Standard | EURO II | ||||
| Transmission | Model | HW 15710,10 forwards and 2 reverse | |||
|
Brake system
|
Service brake | Dual circuit compressed air brake | |||
| Parking brake |
spring energy, compressed air operating on rear wheels
|
||||
| Auxiliary brake |
Engine exhaust brake
|
||||
|
Steering system
|
Model | ZF8118 hydraulic steering with power assistance | |||
| Front axle |
HF9 , Steering with double T-cross section beam Loading capacity:9000KG |
||||
| Rear axle | HC16, Casting axle housing, central double reduction with differential locks between axles and wheels | ||||
| Color | Optional | ||||
| Tire | 12.00R20 radial tyre | ||||
|
Electrical system
|
Operating voltage | 24V,negative grounded | |||
| Starter | 24V,7.35KW | ||||
| Alternator | 28V,1500W | ||||
| Batteries | 2*12V.165Ah | ||||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. | |||||

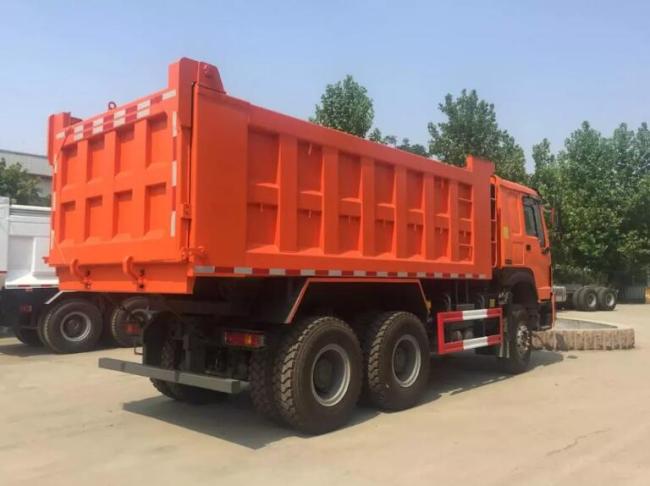

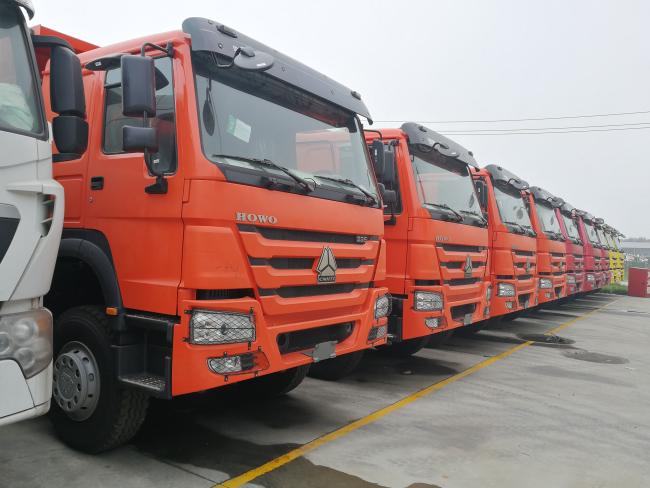

Detailed photo:
