D10.38 Engine 420HP Prime Mover Truck 6X4 , 12 Wheel Tractor Head Truck
HOWO A7 Sinotruk Engine 420HP 6X4 12 Wheels Tractor Head Trucks
Description:
For the tractor truck also called prime mover in some countries.
According to clients' requirements,
we can customize different horse power and loading weight.
The popular tractor truck models include:
SINOTRUCK HOWO 371hp 6X4 10 wheeler 25tons tractor truck,
sino truck 35tons ten wheeler truck, SINOTRUK 420hp howo truck,
HOWO 420hp 40tons tipper truck.
Cabin: HOWO76 cab, (one sleeping, with air-condition),
all-steel forward control,55ºhydraulically tiltable to the
front, 2- arm windscreen wiper system with three
speeds, laminated windscreen with casted-in radio
aerial, hydraulically damped adjustable driver’s seat and
rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette
recorder, safety belts and adjustable steering wheel, air
horn, with 4-point support fully floating suspension and
shock absorbers
Specification:
| Truck Model | ZZ4257N3241V | ||
| Dimension(Lx W xH)(mm) | 6800x2490x3668 | ||
| Approaching angle/Departure angle(°) | 16/70 | ||
| Overhang(front/rear) (mm) | 1500/700,725 | ||
| Wheel base (mm) | 3200+1400,3225+1350 | ||
| Max speed(km/h) | 102 | ||
| Curb weight(kg) | 11930 | ||
| Loading Weight(kg) | 40000 | ||
|
Engine ( technology, made in China) |
Model |
D12.42,water-cooled,four strokes, 6 cylinders in line with water cooling, turbocharged and intercooling, directly injection |
|
| Fuel type | Diesel | ||
| Horse power | 420hp | ||
| Emission | EURO2 | ||
| Fuel tanker capacity(L) | 400 | ||
| Transmission | Model | HW19710 | |
|
Brake system
|
Service brake | Dual circuit compressed air brake | |
| Parking brake |
spring energy, compressed air operating on rear wheels
|
||
|
Steering system
|
Model | ZF8098 | |
| Front axle |
HF9 ( Steering with double T-cross section beam Loading capacity: 9000kg) |
||
| Rear axle | HC16 ( Pressed axle housing, central double reduction with differential locks between axles and wheels) | ||
| Color | RED . | ||
| Tyre | 315/80R22.5 11pics | ||
| King Pin | 90# or 50# optional | ||
| Electrical system | Battery | 2X12V/165Ah | |
| Alternator | 28V-1500kw | ||
| Starter | 7.5Kw/24V | ||

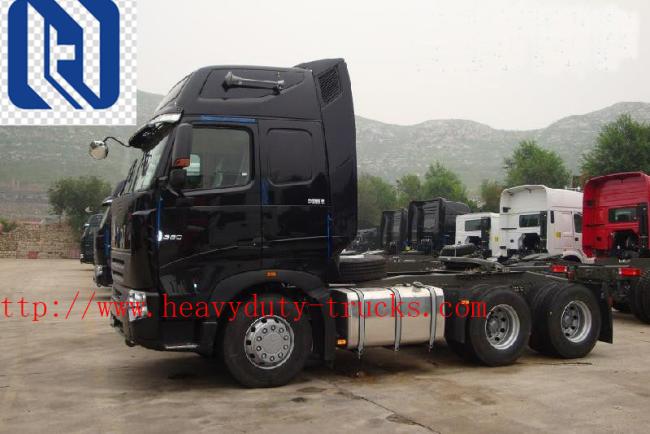

Detailed photo:
Related Production:
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 55470323, 54640582, 54640443, 54622108, 54621778, 54621524, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
With over 51 years of experience , we have becoem one of the key manufacturers of trucks and road machiens in China .
Exporting to more than 50 countries for 14 years .
For more information ,contact us now.
