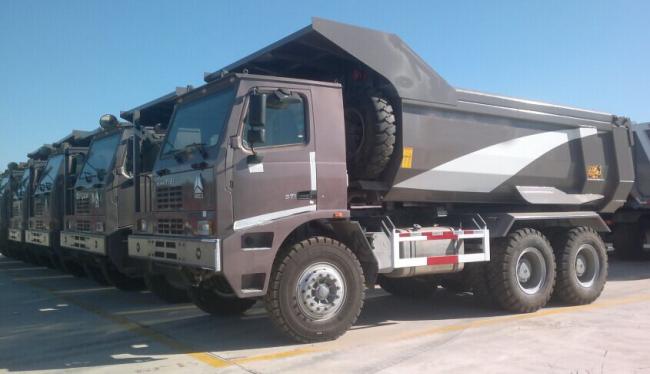

Q235 Material Heavy Duty Dump Truck Mining Dump Truck Mining Heavy Tipper Truck With 70Tons
Price:
wholesale price ,factory sale directly
MOQ:
1unit
Delivery Time:
25-30days
Brand:
CIVL
Product Description
SINOTRUK HOWO 10 WHEEL 20 TONS 6X4 TIPPER TRUCK DUMP TRUCK HEAVY DUTY TRUCK
| SINOTRUK HOWO 6x4 DUMP TRUCK MAIN SPECIFICATIONS | |||||
| Chassis | Model | ZZ3257N3247A | ZZ3257N3447A | ZZ3257N3647A | ZZ3257N3847A |
| Cab | Model | HW76 NEW face , Left Hand Drive, RHD is optional | |||
| Detailed Information | Hw76 cabin, single sleeper, all-steel forward control, 70° hydraulically tillable to the front, 2-arm windshield wiper system with three speeds,laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, exterior sun visor, adjustable roof flap, stereo ratio/cassette recorder, safety belts, adjustable steering wheel, air horn, airconditioner, with 4-point support fully floating suspension and shock absorbers. | ||||
| Engine | Model | WD615.62 | WD615.87 | WD615.69 | WD615.47 |
| Power | 266 hp | 290 hp | 336 hp | 371 hp | |
| KW/rpm | 196/2200 | 213/2200 | 247/2200 | 273/2200 | |
| Displacement | 9.726 L | ||||
| Transmission | HW13710/HW19710 ( 10 forward , 2 reverse , with direct connect PTO ) | ||||
| Front Axle | HR9 (Drum Braking) Max.loading:9000 kg | ||||
| Rear Axle | HC16 (Drum Braking) Max.loading:16000 * 2 kg Ratio : 4.8/5.73 | ||||
| Steering | ZF8118,hydraulic steering with power assistance | ||||
| Braking System | Service brake: dual circuit compressed air brake Parking brake:spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake |
||||
| Electrical System | Operating voltage:24 V, negative grounded Starter:24 V,5.4Kw Alternator:3-phtase,28 V,758 W Batteries:2×12 V,135Ah Cigar-lighter, horn, headlamps, fog lights, indicators and reverse light |
||||
| Wheel Tyre | Tyres: 12.00R20 raidial tyreOption: 315/80R22.5,295/80R22.5,12.00-20 | ||||
| Body Dimension(mm) | 4800x2300x1200 | 5200x2300x1400 | 5600x2300x1400 | 5800x2300x1400 | |
| Body Shape | rectangle shape/ U shape / volve shape / mining body | ||||
| Hydraulic Cylinder | ventral tipping / front tipping | ||||
| Thickness of Body | Floor 8 / 10 mm | Side 8 / 6 / 4 mm | |||
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
