All Wheel Drive Heavy Duty Dump Truck For Transport Operations Oil Mining
All Wheel Drive Heavy Duty Dump Truck For Transport Operations Oil Mining
Heavy Duty Dump Truck Description:
HOWO 6 × 6 Heavy Duty Dump Truck can be used as transport vehicles, various types of transport, fuel trucks, all types of transportation equipment chassis, suitable for off-road transport, towing equipment, transport operations oil, mining, forestry, fire fighting equipment and various types of special vehicle modification needs .
High strength/ high rigidity/ long life block: vermicular cast iron body, similar strength cast steel, similar heat dissipation potential gray iron, strong anti-thermal deformation, high cost, can be adopted in few high end engines in the world due to its core technology.
1). Good economy: high-explosive pressure and optimized injection and combustion system, ensuring its low specific oil consumption at a wide range of sppds, Minimum specific oil consumption is 186/kwh.
2). Low nose: noise reaches the international level.
Heavy Duty Dump Truck Drive Axle
The driving axle adveloped by SINOTRUK consist of single stage reduction axle and double stage reduction axle, which loading capacity include 5, 9, 11, 13, 16, 26 tons, matching SINOTRUK various series vehicles.
Heavy Duty Dump Truck Specifications:
|
Model |
6x6 dump truck Based on using STR technology |
|
|
Cabin |

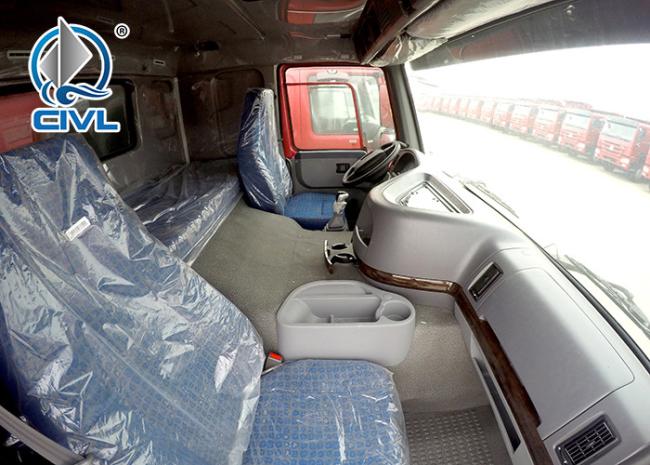

Air suspension short flat cab, Hydraulic shock absorb adjustable seat, Safety belt, Adjustable steering, Sunroof, sun cap, single bunk |
|
|
Engine |
Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling. |
|
|
Model: |
290HP/280kw |
WEICHAI engine |
|
|
Displacement(L): |
9.726liter |
|
|
Max torque: |
1460NM@1400-1600rpm |
|
|
Bore/stoke: |
126mm/130mm |
|
|
Fuel consumption: |
<198g /kwh |
|
Gear box |
American technology |
Max torque:1600NM |
|
|
Model: |
HW15710C |
|
|
Speed: |
15speed, 2reverse |
|
Electric Equipment |
||
|
|
Operating voltage: |
24Vnegative grounded |
|
|
Starter: |
24V,5.4KW |
|
|
Alternator |
28V,758W |
|
|
Battery voltage |
12V/135Ah, cigar lighter |
|
Frame |
Strengthen steel frame, designed according to tough road condition. |
|
|
Tyre |
10+1 spare tyre with rim |
|
|
|
12.00-20 bias tyre |
|
|
Suspension system: Strengthen heavy duty Leaf spring type |
||
|
|
Front/Rear |
10/12 |
|

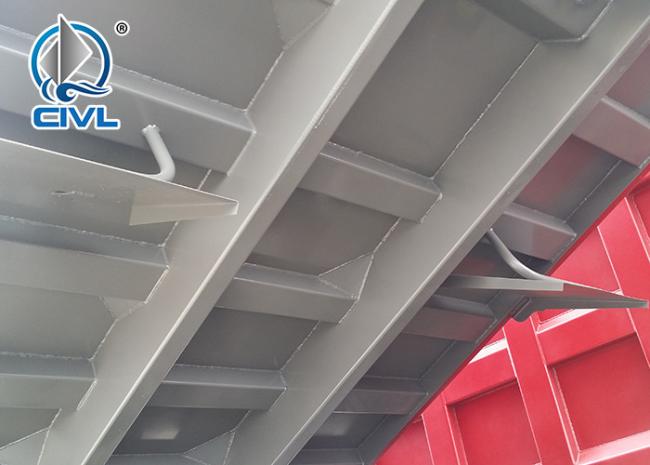

Dump body: type of body : |
||
|
Inside size of Body(mm): 5170x2300x1500, 8x6mm (thickness of floor and rail of the dump body) |
||
|
Lifting type: HYVA front lifter type hydraulic system |
||
|
Overall dimension(mm): 11868x2496x3250 (Length x width x height) |
||
|
Wheelbase |
3800+1400mm |
|
|
Track: |
|
|
|
|
Front/Rear |
2036/1850 |
|
|
Approach/Departure angle |
28/30 |
|
|
Front /Rear overhang |
1525/1654 |
|
|
Max speed |
90km/h |
|
Curb weight: |
12190kg |
|
